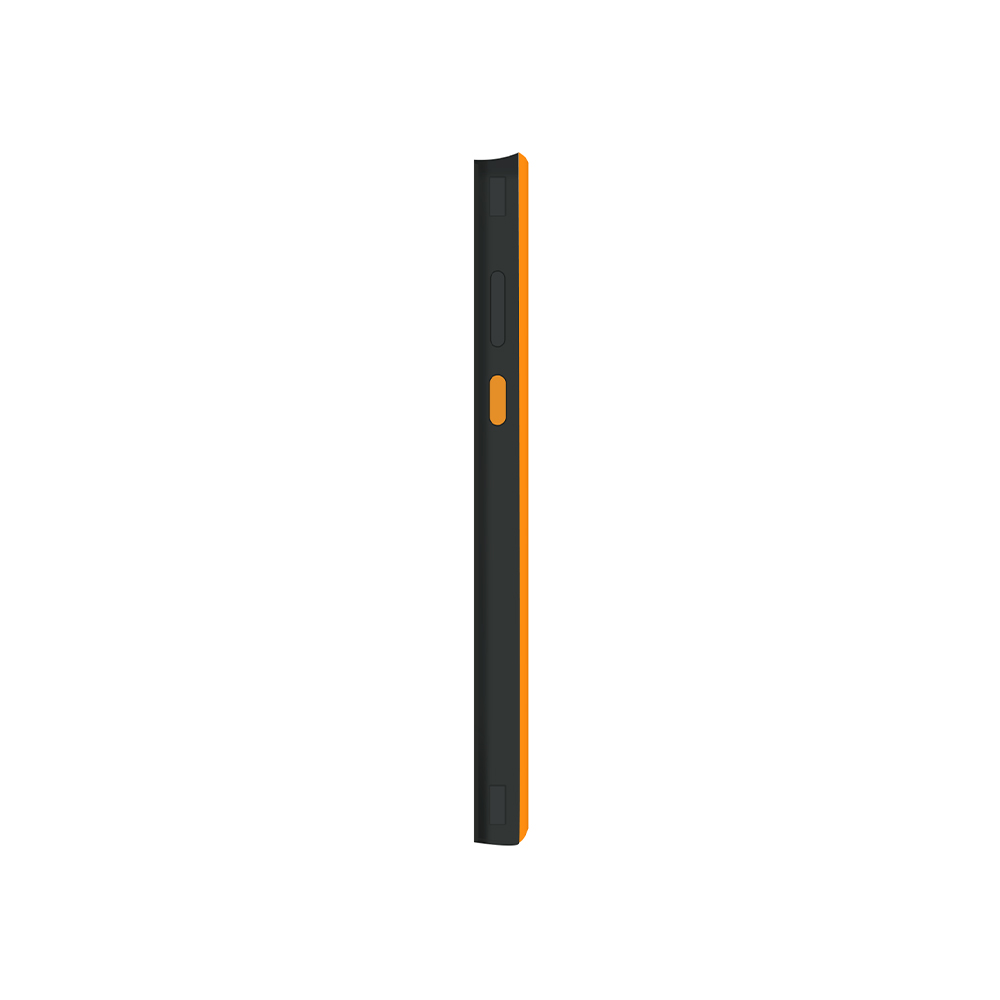

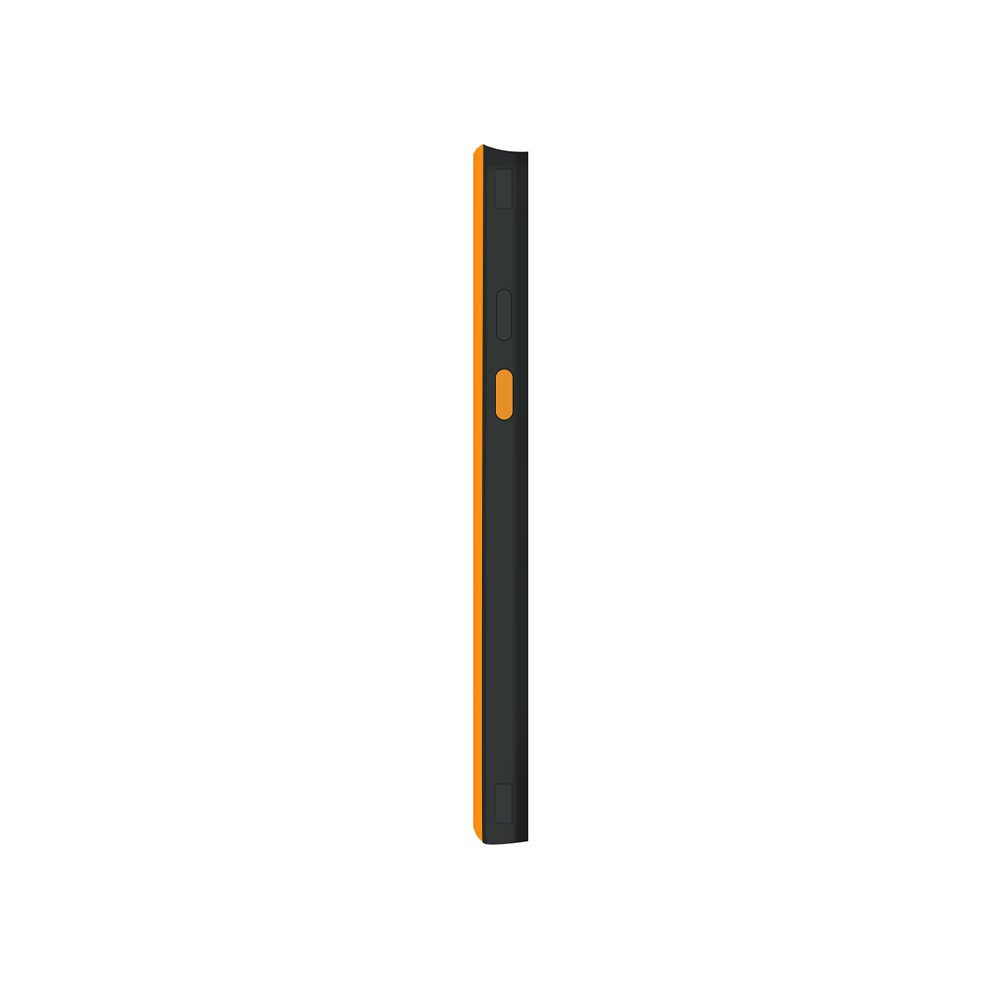

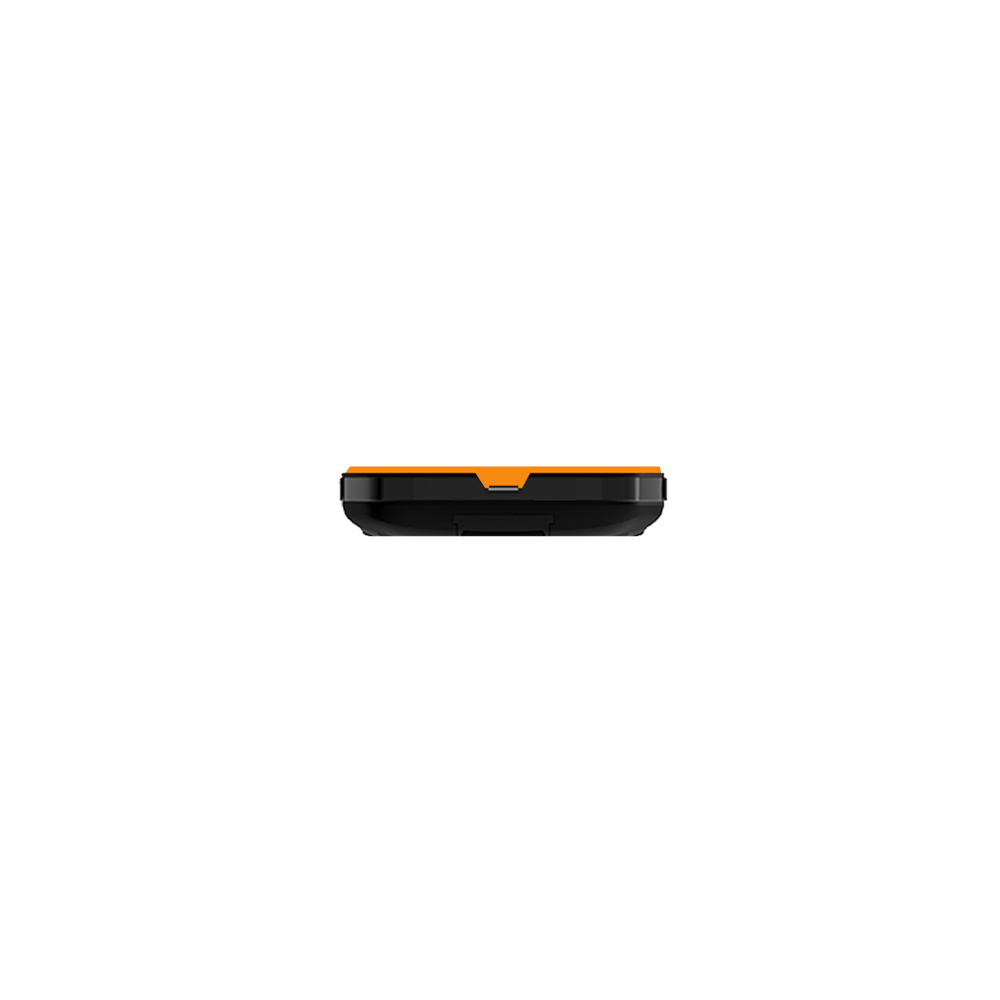

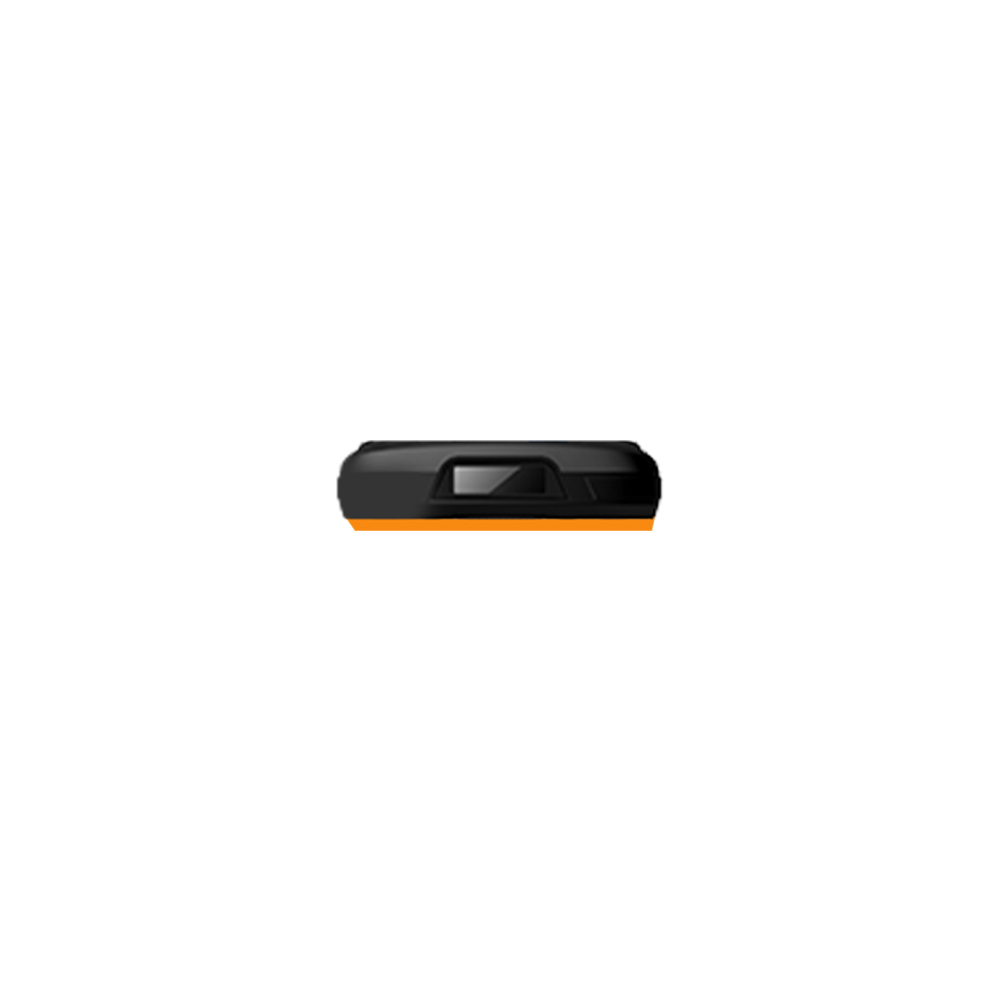

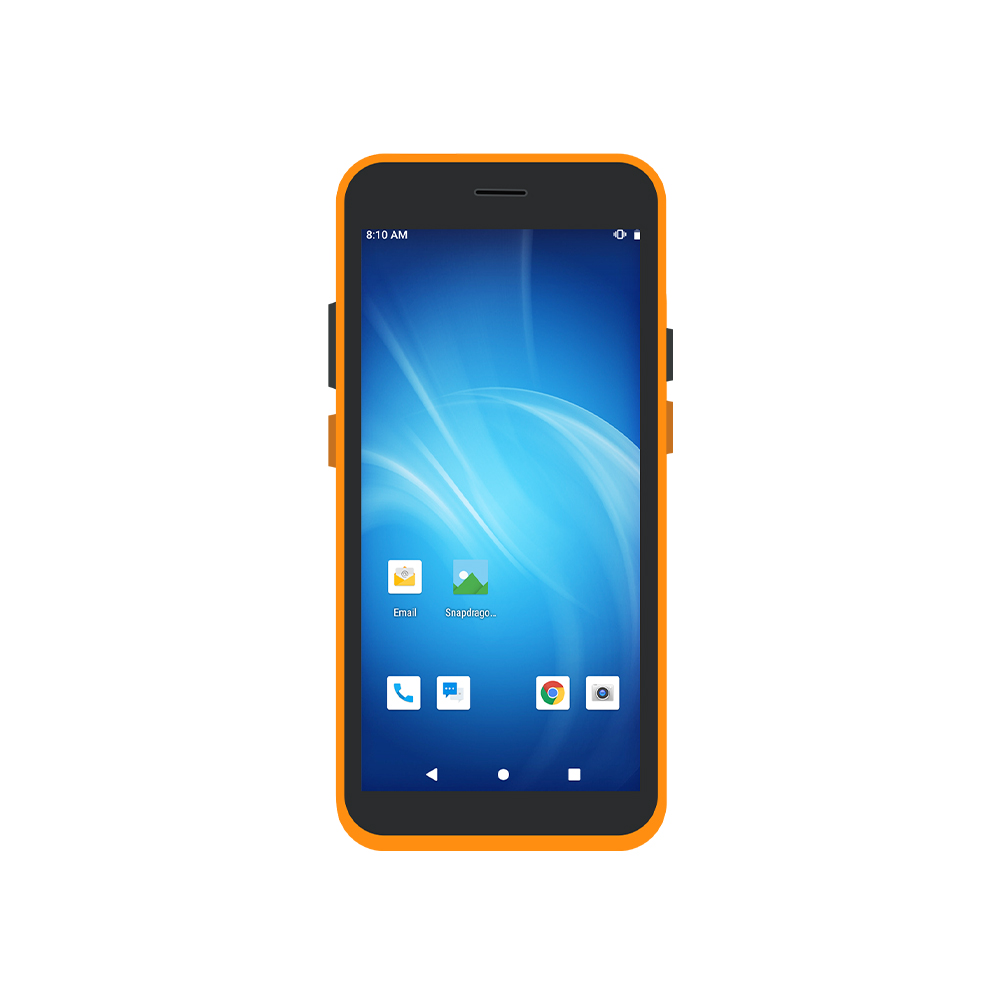

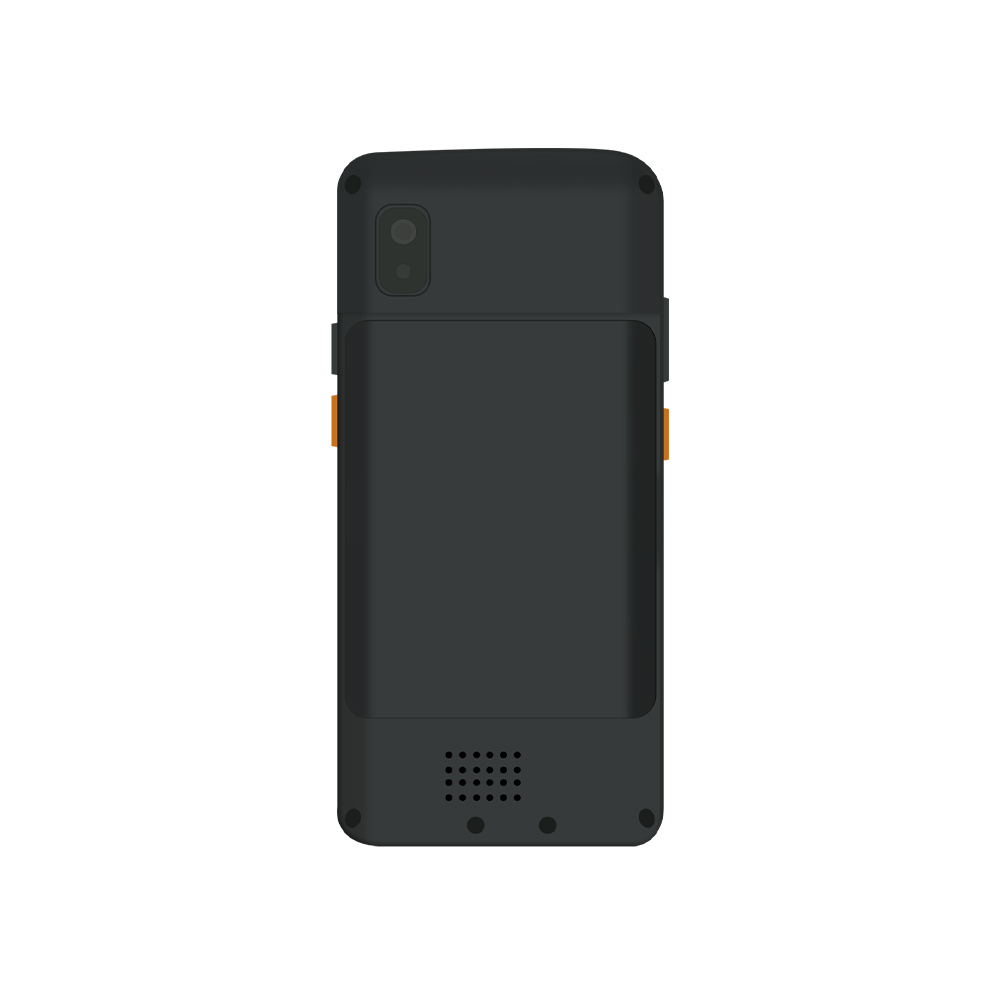

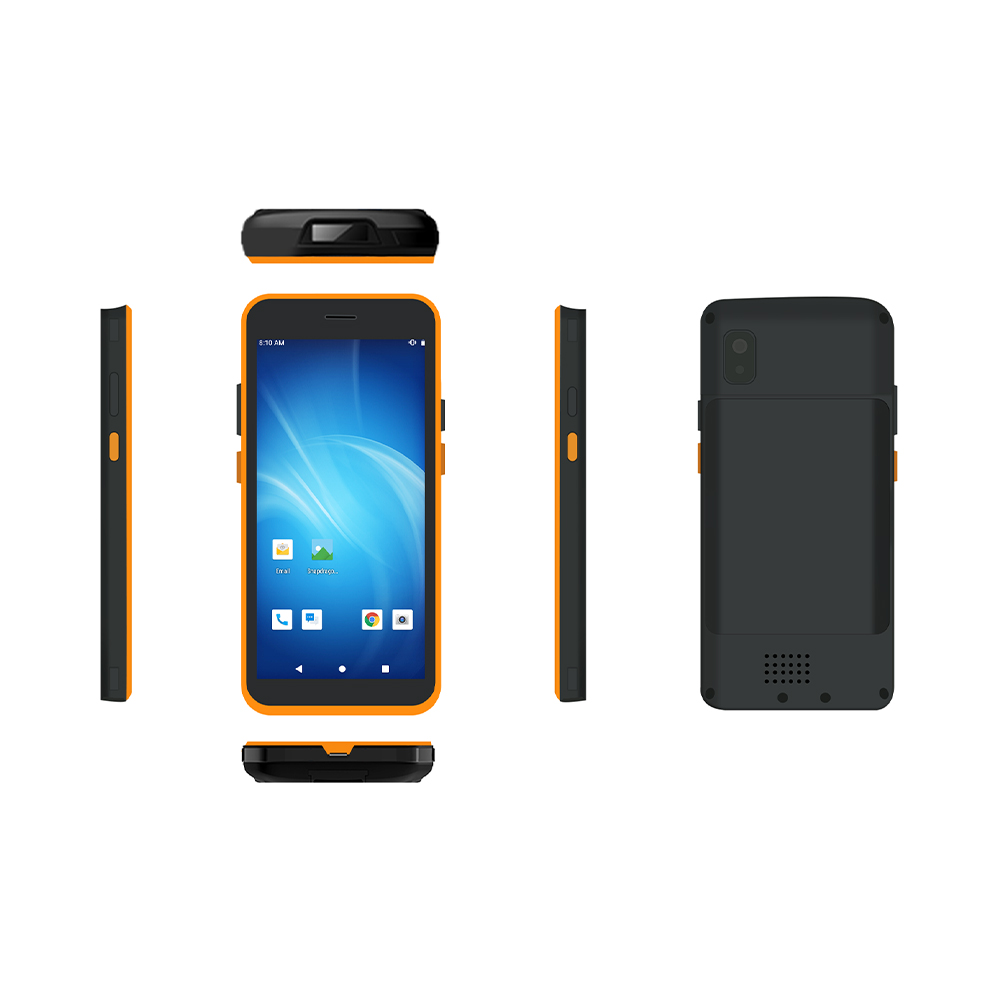

RS60 Rugged Handheld Terminal

Honeywell N6603 Scanning Engine | 5.5″ IPS | Qualcomm Octa‑Core | Android 10 | 5000mAh Battery

The RS60 handheld terminal is built for fast, accurate barcode capture. Powered by the Honeywell N6603 scanning engine, it reads virtually all 1D/2D barcodes with precision down to 3mil. Combined with a 5.5‑inch IPS HD+ display, Qualcomm octa‑core processor, and a 5000mAh detachable battery, the RS60 delivers reliable performance for inventory management, retail operations, and logistics applications. Optional NFC adds contactless tag reading capability.

Why Choose RS60?

• Premium Honeywell Scanning Engine
  Equipped with the Honeywell N6603 – a high‑performance 2D imager. Reads codes including Code 128, Code 39, UPC/EAN, Code 93, Interleaved 2 of 5, PDF417, Data Matrix, QR Code, Aztec, MaxiCode, and more. Accuracy ≥3mil ensures even small or damaged barcodes are captured reliably.

• Solid Performance
  Powered by the Qualcomm SDM450 octa‑core 1.8GHz processor with Android 10 and 4GB RAM + 64GB ROM (expandable via TF to 128GB). Smooth day‑to‑day operation for data‑intensive tasks.

• Compact & Ergonomic
  Dimensions: 170 × 80(73) × 23 mm | Weight: <420g (including battery) – comfortable for extended shifts.

• Long‑Lasting Detachable Battery
  3.8V / 5000mAh removable battery – swap batteries without downtime.

• Clear 5.5″ Display
  5.5‑inch IPS HD+ screen (720×1440) with multi‑touch – responsive and easy to read indoors and outdoors.

• Comprehensive Connectivity

• Dual‑band Wi‑Fi (2.4/5GHz, 802.11 a/b/g/n)

• Bluetooth 4.2

• 4G LTE global bands: FDD‑LTE (B1/3/5/7/8/20), TDD‑LTE (B38/40/41) + 2G/3G/CDMA fallback

• Multi‑GNSS: GPS, BeiDou, GLONASS, Galileo

• Professional Imaging & Feedback
  Rear 13 MP autofocus camera with flash • Front 5 MP camera • Tri‑color breathing light • Motor vibration • Loudspeaker & microphone support voice calls.

• Physical Controls
  Keys: Power, two SCAN buttons, Volume +/‑. Sensors include gravity, gyroscope, and proximity.

Key Technical Specifications (Complete)

Optimized for Your Industry

• Warehouse & Logistics – Quickly scan barcodes from pallets, bins, and packages with the Honeywell N6603 engine.

• Retail Management – Assist customers with price checks, inventory lookup, and NFC‑based loyalty or payments.

• Field Service – Capture asset tags, take photos with the 13MP camera, and record GPS coordinates.

• Inventory Counting – Reliable scanning even for small or damaged labels (≥3mil accuracy).

Why Honeywell N6603?

The Honeywell N6603 is a proven industrial 2D imager known for:

• Aggressive decoding of poor quality or low‑contrast barcodes

• Fast motion tolerance – ideal for conveyor belt or high‑volume scanning

• Wide field of view and excellent depth of field

What’s in the Box

Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1

Ready to Enhance Your Data Collection?

The RS60 handheld terminal delivers enterprise‑grade barcode scanning with the trusted Honeywell N6603 engine, plus a rugged design, long battery life, and optional NFC. Contact us for a demo, sample testing, or volume pricing.
