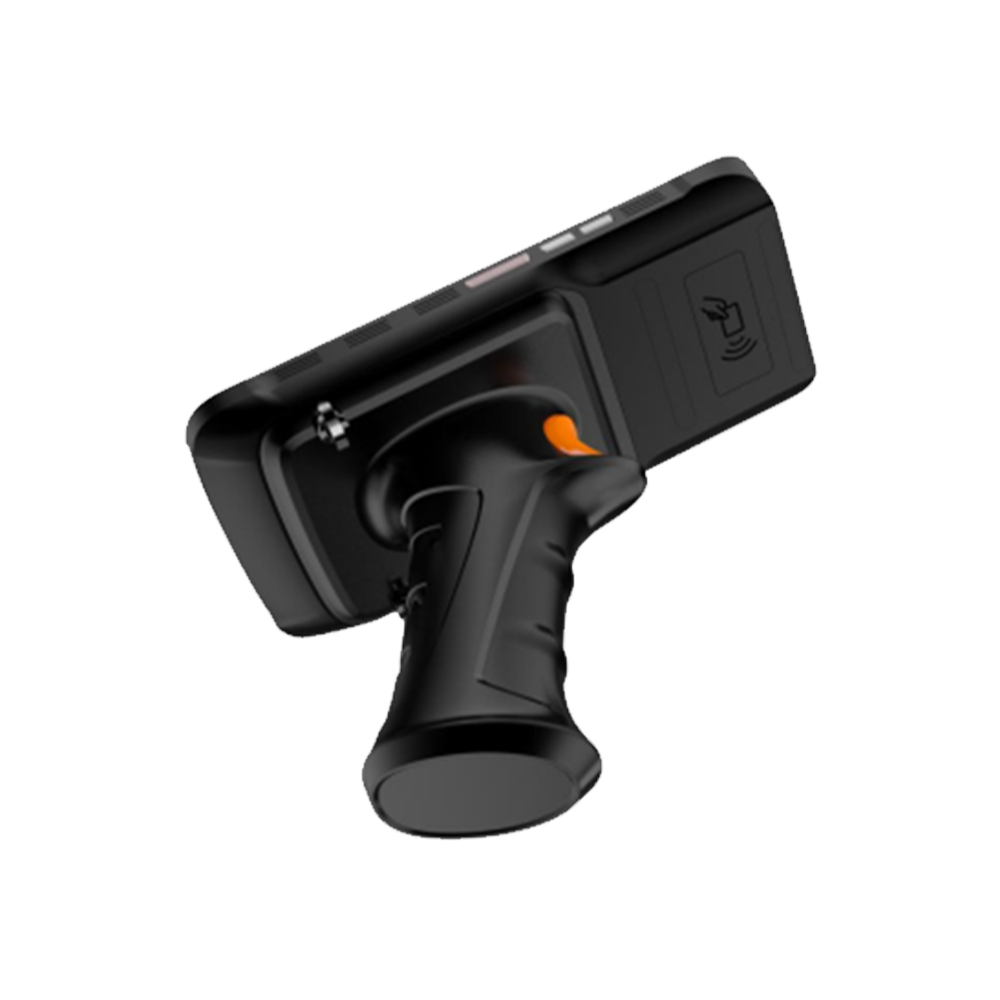

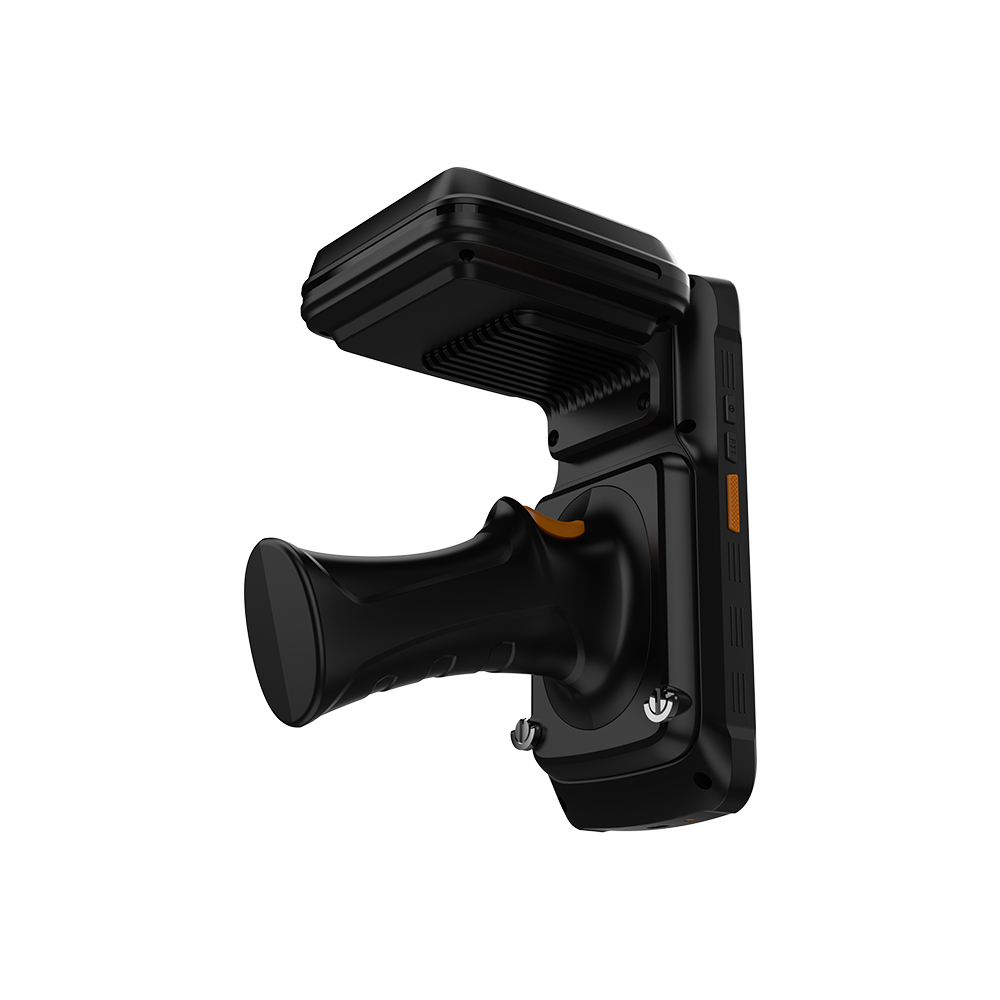

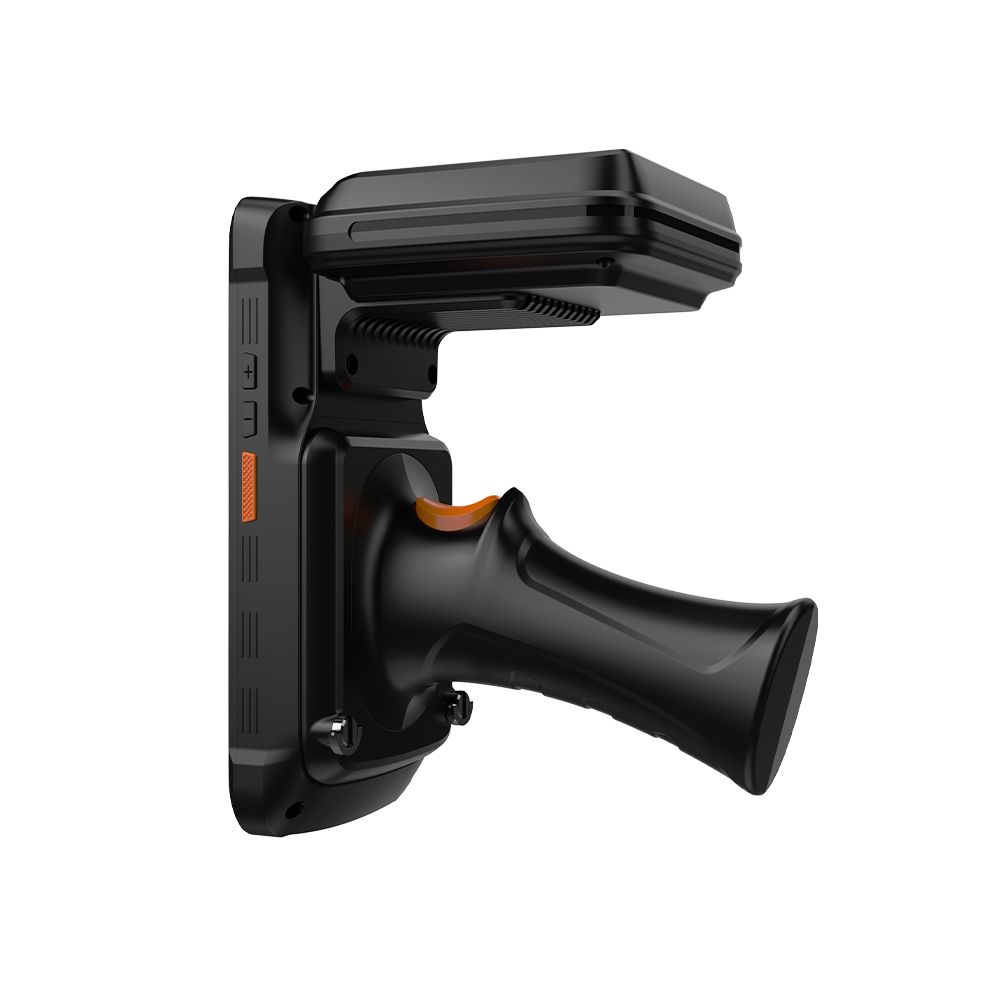

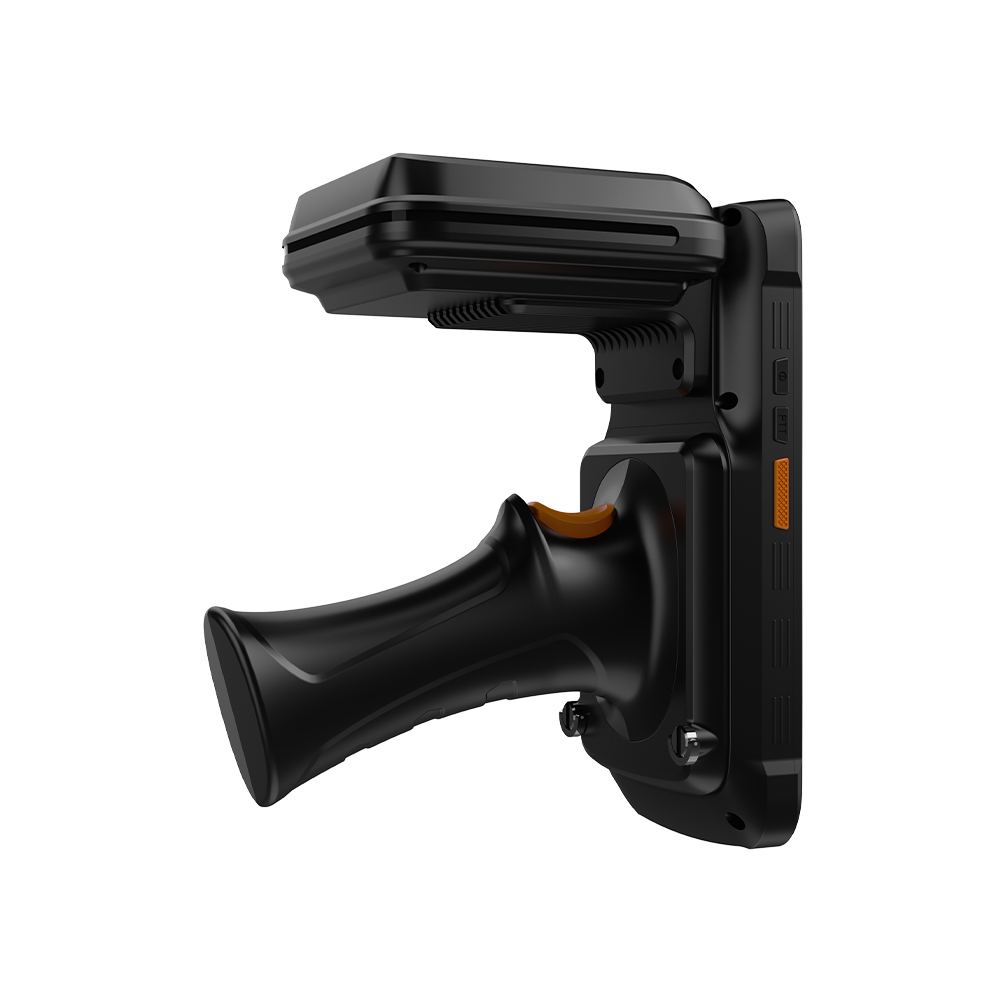

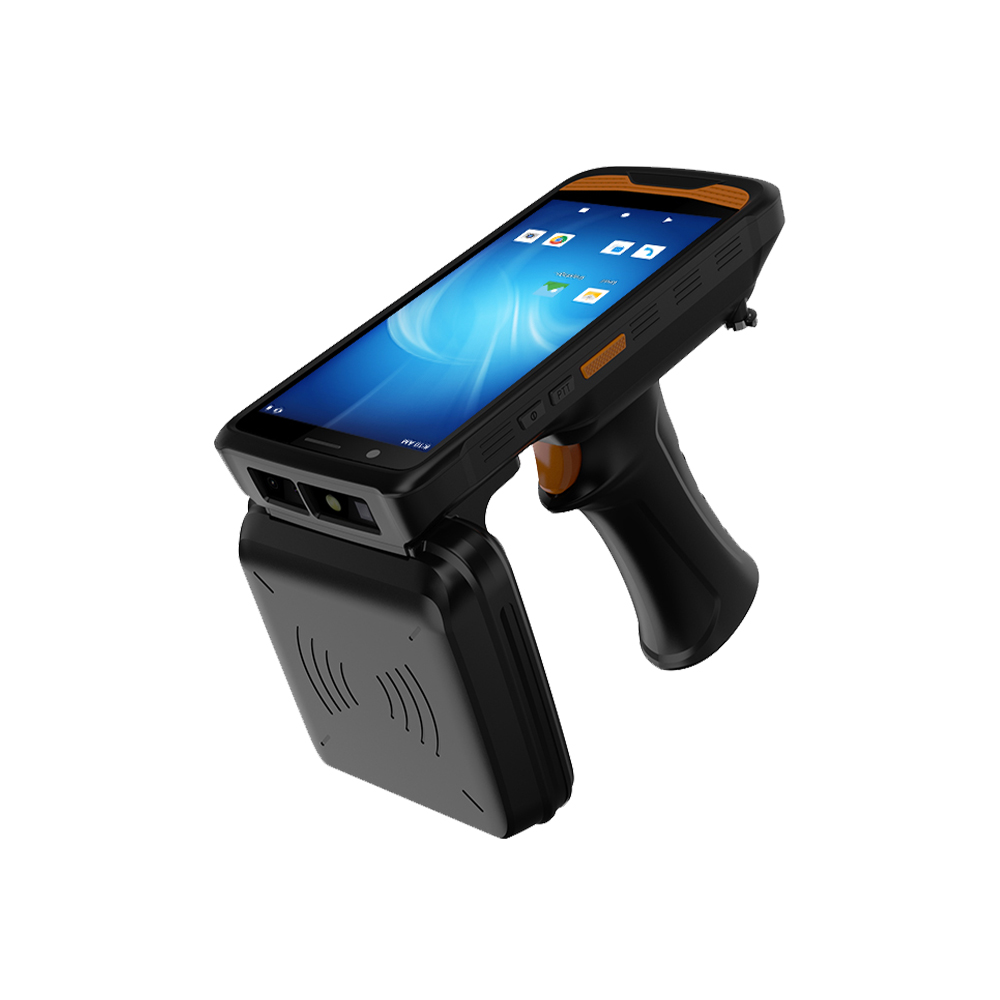

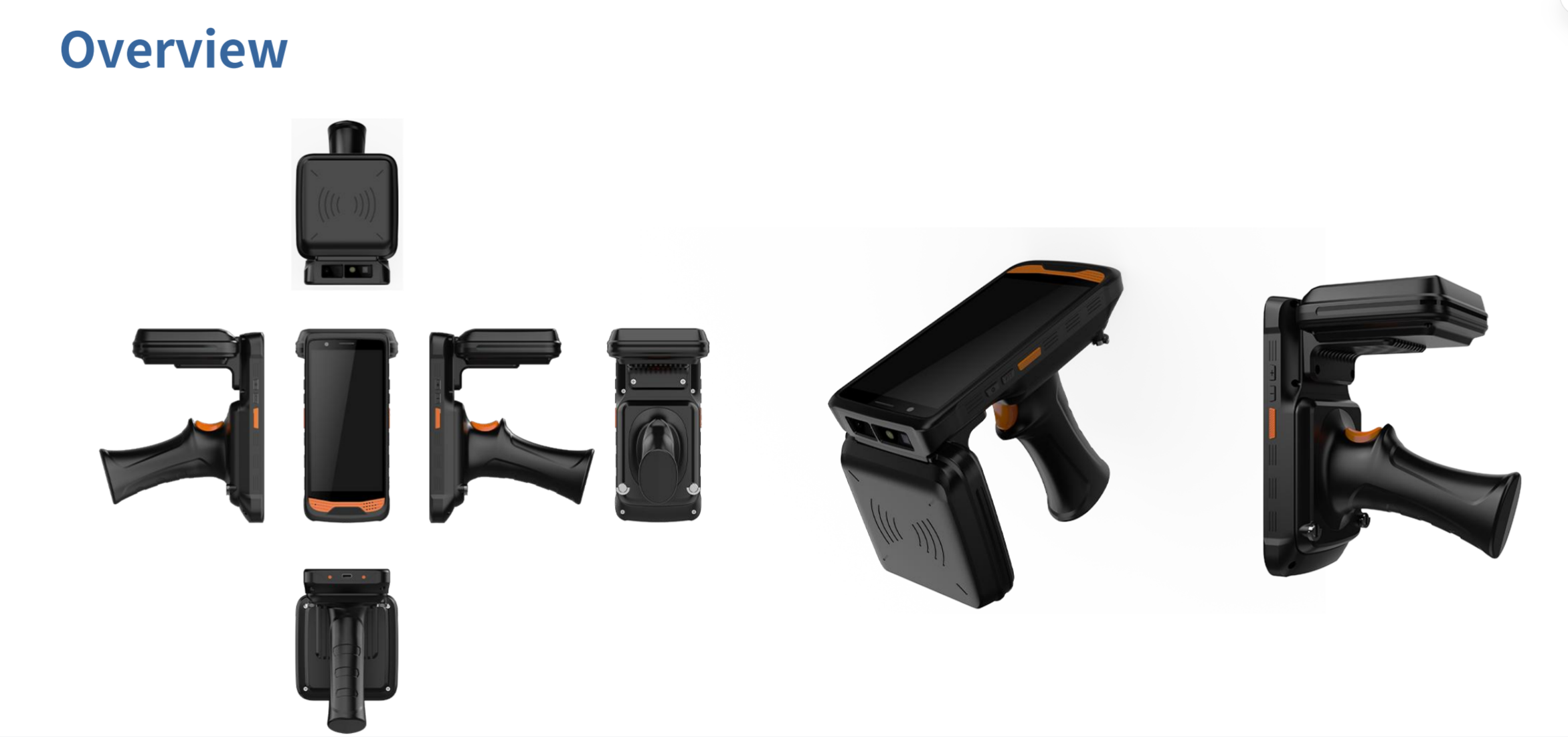

R366C‑S Long‑Range UHF RFID Handheld

5.5″ IPS | Impinj E710 | 10‑20m Read Range | 10000mAh Battery | Android 13

The R366C‑S handheld terminal is built for high‑intensity RFID applications. Powered by the Impinj E710 UHF module, it delivers exceptional read range (up to 20 meters) and speed (≥900 tags/s). Combined with a large 5.5‑inch IPS HD+ display, Qualcomm octa‑core processor, and a massive 10000mAh detachable battery with Power Delivery, this device keeps you running through the longest shifts – indoors or outdoors.

Why Choose R366C‑S?

• Industry‑Leading UHF RFID Performance
  Equipped with the Impinj E710 chip and a 4dBi antenna, the R366C‑S reads tags from 10 to 20 meters (depending on region and tag type). Capture over 900 tags per second – ideal for bulk inventory, asset tracking, and rapid cycle counting.

• All‑Day, Multi‑Day Battery
  The 3.8V / 10000mAh detachable battery powers intensive RFID scanning for full shifts and beyond. USB‑C with Power Delivery (PD) ensures fast recharging when you need it.

• Large, Usable Display
  5.5‑inch IPS HD+ screen (720×1440), multi‑touch, bright and responsive – view inventory dashboards, maps, and forms clearly even under sunlight.

• High Performance Computing
  Qualcomm SM6225 octa‑core 2.4GHz + Android 13 + 4GB RAM / 64GB ROM (expandable to 256GB via TF) – smooth multitasking and data processing.

• Rugged Yet Ergonomic

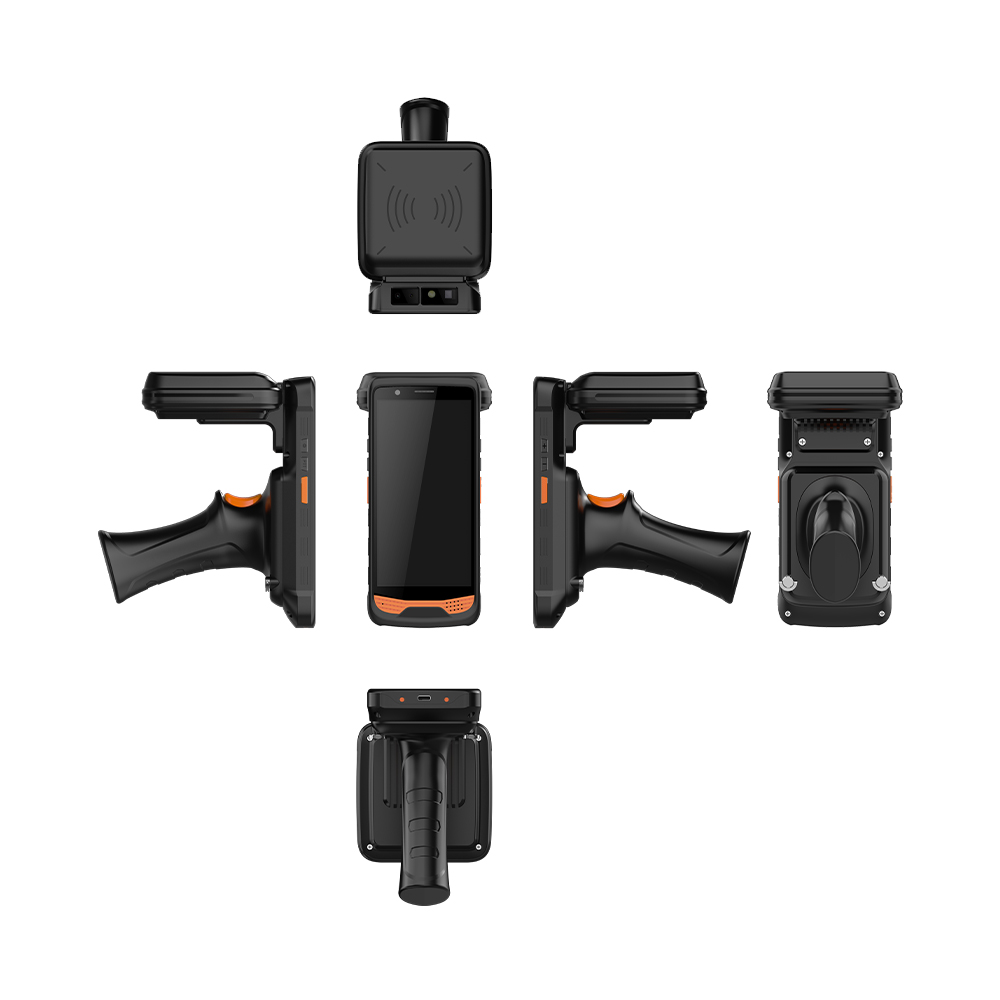

  Compact dimensions: 170 × 79 × 22.6 mm, weight <700g. Built for warehouse, utility, and field use. Side keys include Power, Volume +/‑, and two dedicated SCAN buttons for one‑handed operation.

• Comprehensive Connectivity

• Dual‑band Wi‑Fi 6 ready (2.4/5GHz, 802.11 a/b/g/n/ac/ax)

• Bluetooth 5.1

• Global 4G LTE – choose CN version (China/India) or EAU version (Europe, Middle East, Africa, Korea, Thailand, Australia)

• GPS/GLONASS/BeiDou for location tagging

• Professional Imaging & Feedback
  Rear 16 MP autofocus camera with flash (front 8 MP optional) • Tri‑color breathing light • Motor vibration • Loudspeaker & microphone support voice calls.

Key Technical Specifications

UHF RFID – Impinj E710

Optional Functions – Tailor to Your Application

• 2D Barcode Scanning Engine
  Accuracy ≥3mil – reads all standard 1D/2D barcodes, even damaged or low‑contrast labels.

• PSAM (2 Slots)
  Supports ISO/IEC 7816‑1/2/3/4 – two PSAM card slots for secure key storage, payment authentication, or government ID verification.

• NFC (already standard? – not listed as optional but similar to other models; however this datasheet doesn’t show NFC as optional, only 2D and PSAM. I’ll only mention what’s listed.)
  Note: NFC is not explicitly listed in this datasheet; stick to 2D and PSAM.

Optimized for Your Industry

• Assets Inventory Management – Quickly locate and count high‑value assets from a distance (up to 20m).

• Retail Store Management – Perform rapid cycle counts, find misplaced items, and manage stock in real time.

• Book Inventory Management – Scan entire shelves of RFID‑tagged books without line‑of‑sight.

• Power Inspection Management – Read utility asset tags from a safe distance, record readings with GPS and camera.

What’s in the Box

Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1.

Ready to Transform Your RFID Workflow?

The R366C‑S handheld terminal offers unmatched UHF RFID performance (Impinj E710, up to 20m range), marathon battery life (10000mAh), and Android flexibility. Contact us for a demo, sample testing, or volume pricing.
