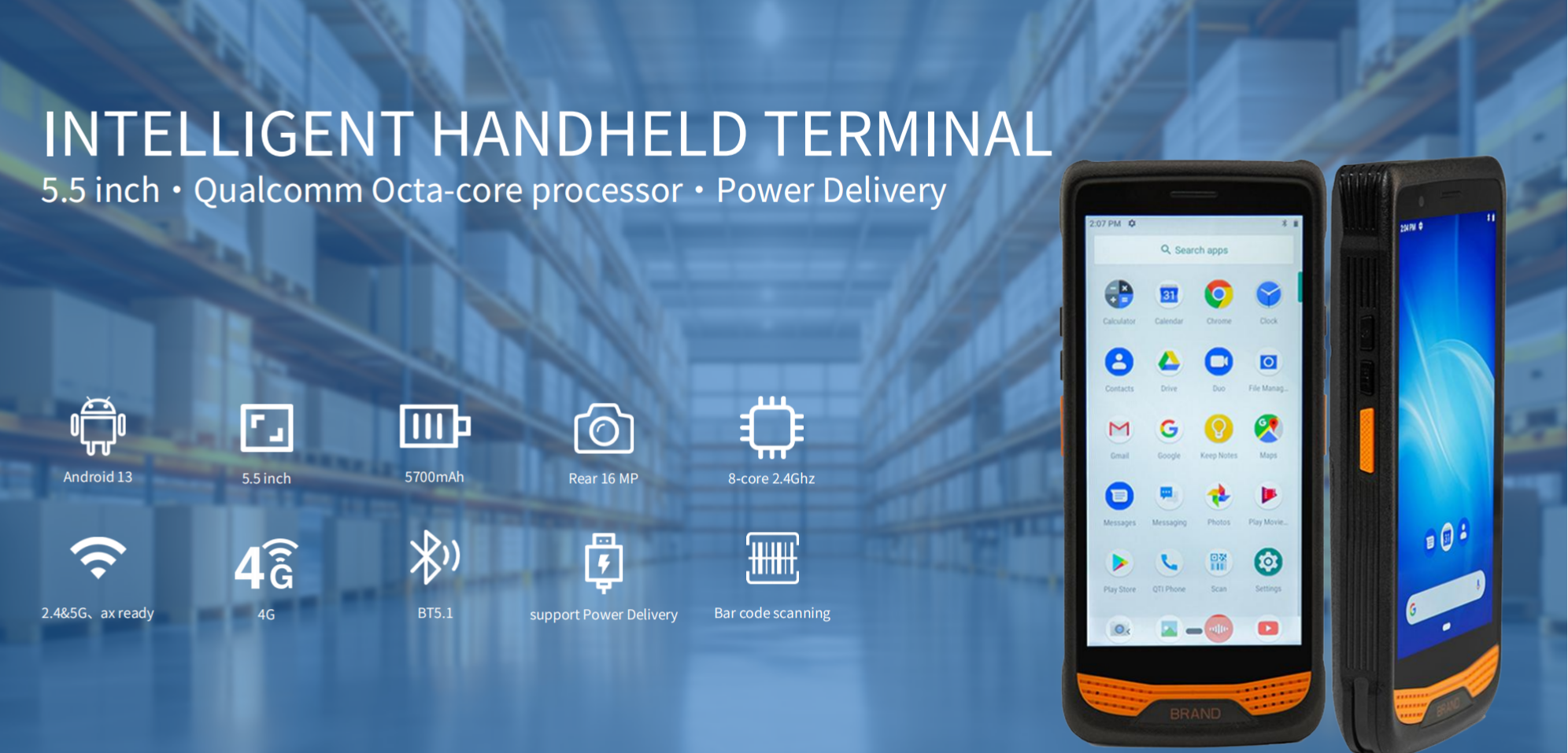

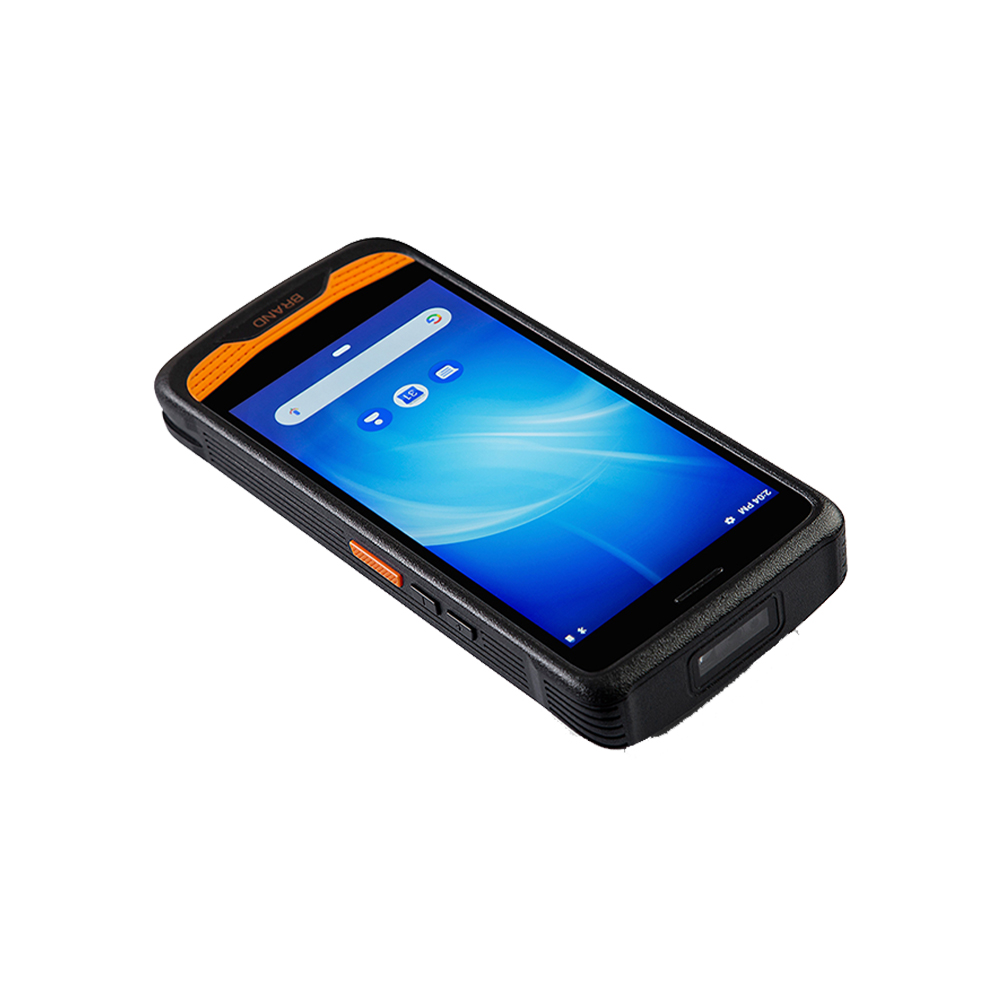

R366A‑S Rugged Handheld Computer

5.5″ IPS HD+ | Octa‑Core Power | 5700mAh with PD | UHF RFID & PSAM Ready

The R366A‑S handheld terminal combines a large 5.5‑inch IPS HD+ display, Qualcomm SM6225 octa‑core 2.4GHz processor, and a massive 5700mAh detachable battery with Power Delivery (PD) support. Built for demanding industrial environments, it offers optional UHF RFID (up to 2m read range), 2D barcode scanning, NFC, and 4 PSAM slots for secure payment or identity applications.

Why Choose R366A‑S?

• Large, Crisp Display

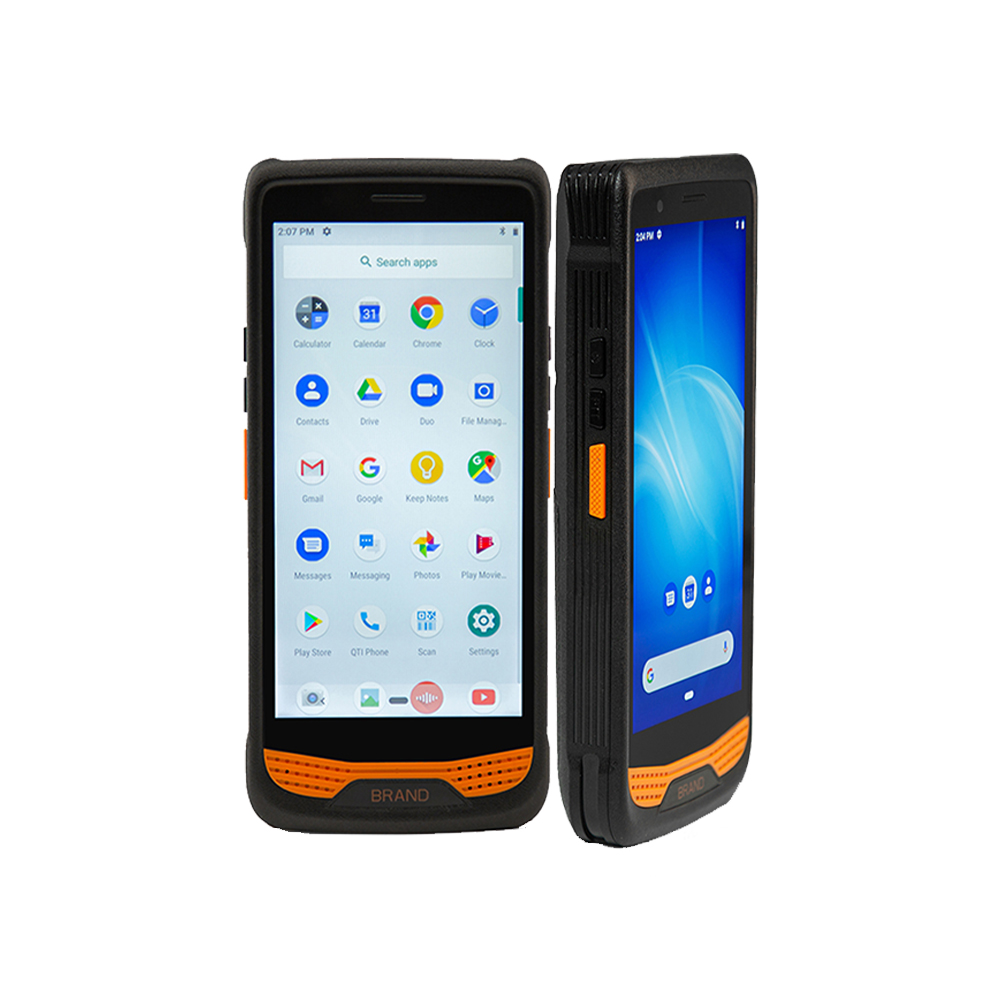

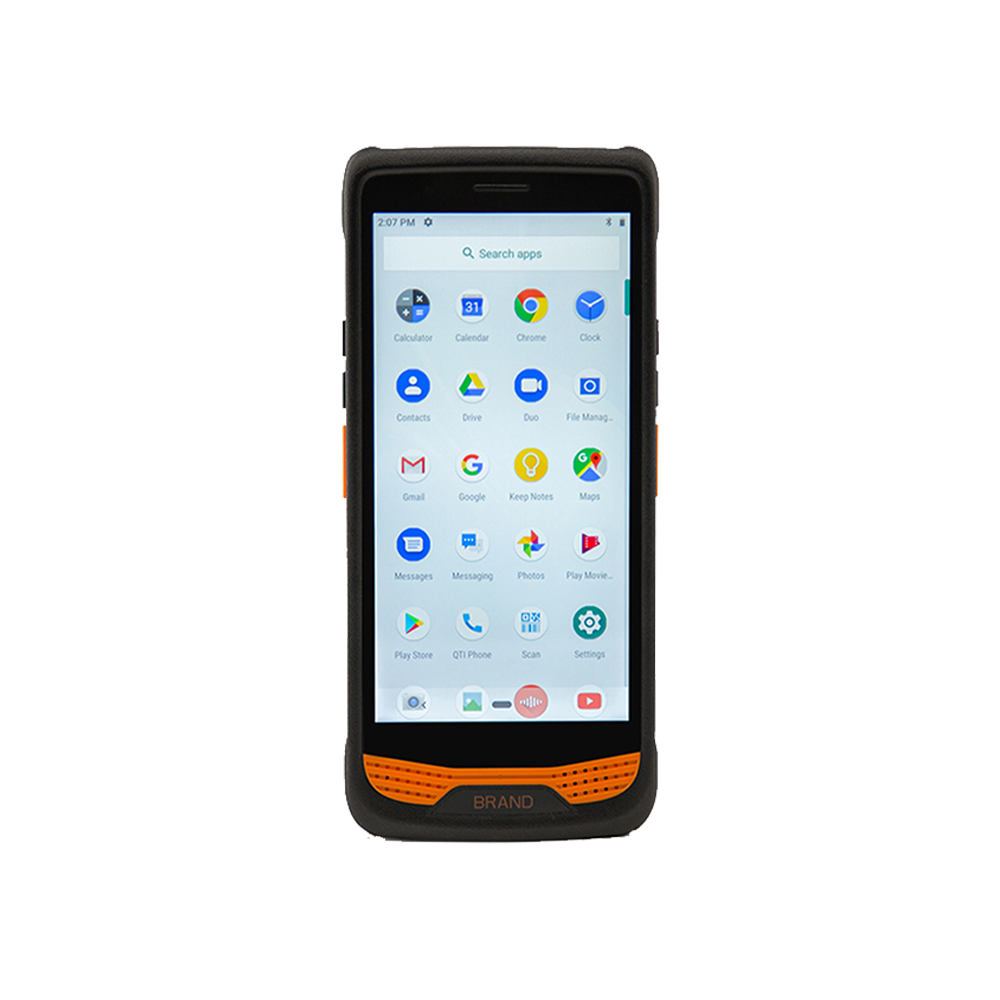

  The 5.5‑inch IPS HD+ screen (720×1440) with multi‑touch provides excellent visibility for inventory lists, forms, and maps – even outdoors.

• High Performance
  Powered by the Qualcomm SM6225 octa‑core 2.4GHz and Android 13 with 4GB RAM + 64GB ROM (expandable to 256GB via TF card), it handles complex apps and data processing with ease.

• All‑Day Battery + Fast Charging
  The 3.8V / 5700mAh detachable battery keeps you working through long shifts. USB Type‑C with Power Delivery support means rapid charging when you need it.

• Rugged, Ergonomic Design

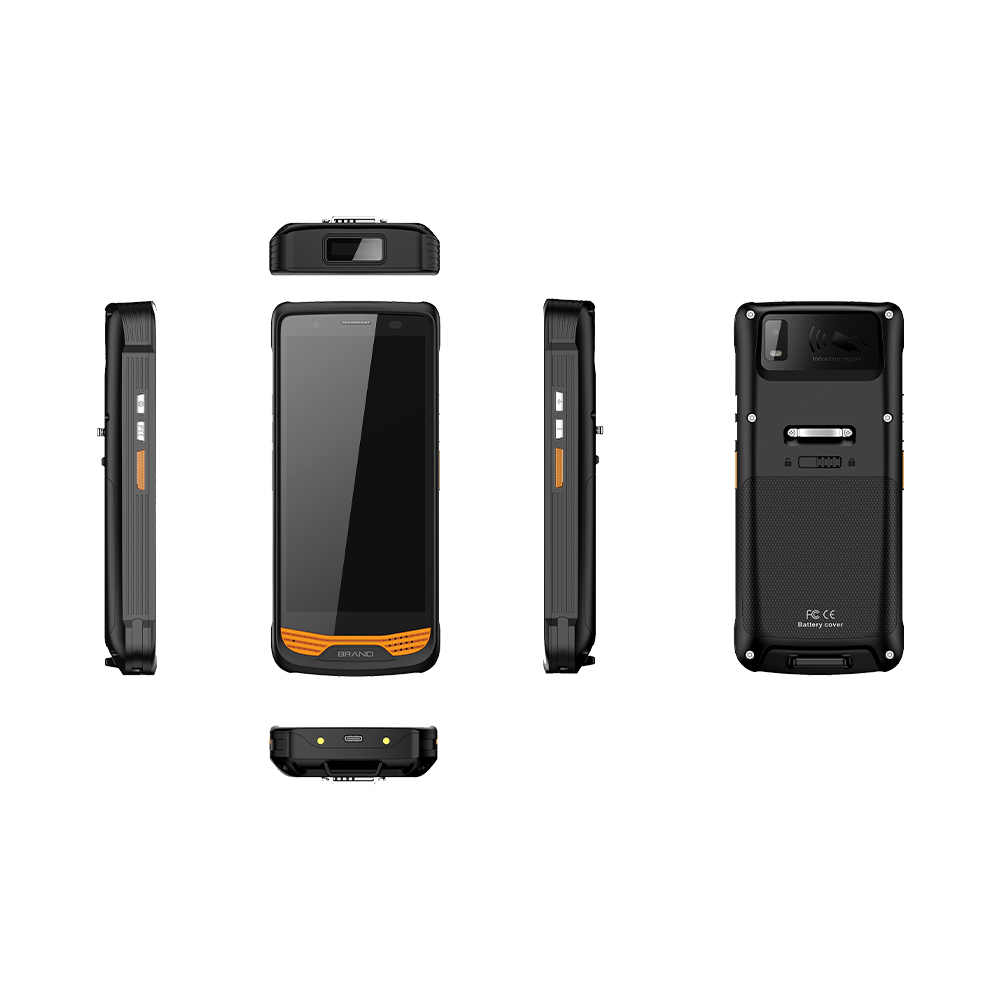

  At 170 × 79 × 22.6mm and under 500g, the device is compact enough for daily carry yet durable for warehouse, logistics, and field operations.

• Comprehensive Connectivity

• Dual‑band Wi‑Fi (2.4/5GHz) with 802.11 a/b/g/n/ac/ax ready

• Bluetooth 5.1

• Global 4G LTE – choose CN version (China/India bands) or EAU version (Europe, Middle East, Africa, Korea, Thailand, Australia)

• GPS/GLONASS/BeiDou for location tracking

• Rich Input & Feedback
  Physical side keys: Power, Volume +/‑, two scan buttons • Tri‑color breathing light • Motor vibration • Loudspeaker & microphone support voice calls.

• Professional Cameras
  Rear 16 MP autofocus camera with flash (front 8 MP optional). Capture photos of assets, damaged packages, or documents.

Key Technical Specifications

Optional Functions – Configure for Your Workflow

• 2D Barcode Scanning Engine
  Accuracy ≥3mil – reads all standard 1D/2D barcodes, even worn or low‑contrast labels.

• NFC Reader/Writer
  Frequency 13.56MHz • Supports ISO14443A/B, ISO15693, NFC tags • Read/write M1 (S50, S70), CPU tags • Distance 2‑3cm – ideal for access control, inventory verification, or contactless payments.

• UHF RFID (Built‑in Ceramic Module)

• Module: 40×40 ceramic antenna

• Frequency options: FCC (902‑928MHz) / ETSI (865‑868MHz) / SRRC (840‑845 & 920‑925MHz)

• Protocol: EPC Class 1 Gen 2 (ISO 18000-6C)

• Read distance: ≤2 meters – perfect for medium‑range asset tracking and inventory counts.

• PSAM (4 Slots)
  Supports ISO/IEC 7816‑1/2/3/4 – four PSAM card slots for secure key storage, payment authentication, or government ID verification.

Optimized for Your Industry

• Logistics & Courier – Scan barcodes, capture signatures, track parcels with GPS, and process payments securely.

• Warehouse Management – Perform cycle counts with UHF RFID (≤2m) and barcode scanning.

• Retail & Inventory – Check prices, update stock, and use NFC for customer engagement.

• Secure Payment / E‑ticketing – Leverage 4 PSAM slots for encrypted transactions or fare collection.

• Asset Tracking – Attach UHF tags to equipment or vehicles for quick, non‑line‑of‑sight reading.

What’s in the Box

Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.

Ready to Upgrade Your Operations?

The R366A‑S handheld terminal delivers a perfect balance of screen size, processing power, battery life, and optional RFID/PSAM functionality. Contact us for a demo, custom configuration, or volume pricing.
