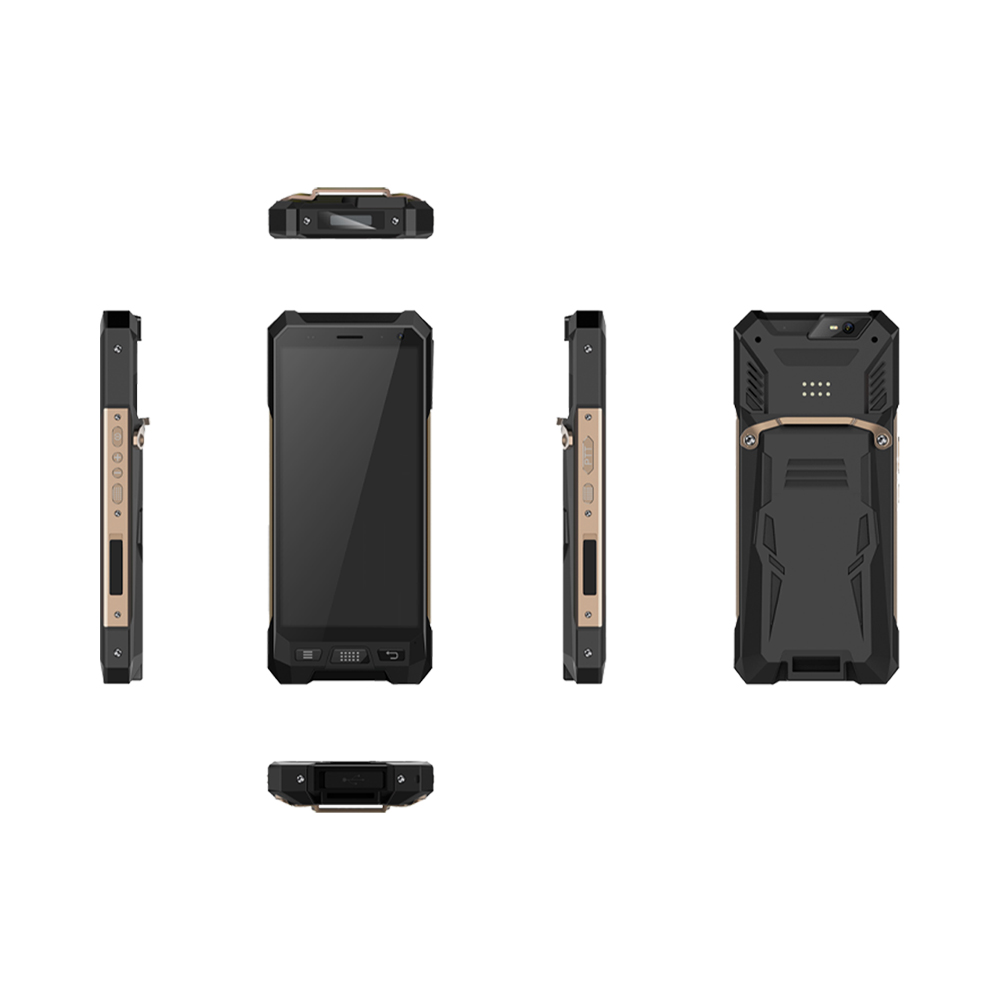

R530C Large‑Screen Handheld Computer

6.0″ FHD+ Display | Octa‑Core | 6000mAh Battery | Optional UHF RFID & 2D Scan

The R530C handheld terminal combines a stunning 6.0‑inch IPS FHD+ screen (1080×2160) with reliable Qualcomm octa‑core processing and a massive 6000mAh battery – all in a rugged, lightweight package (under 500g). Optional features include UHF RFID (up to 2m read range), 2D barcode scanning, NFC, and PSAM for secure transactions. Perfect for warehouses, logistics, retail, and field operations.

Why Choose R530C?

• Immersive Large Display

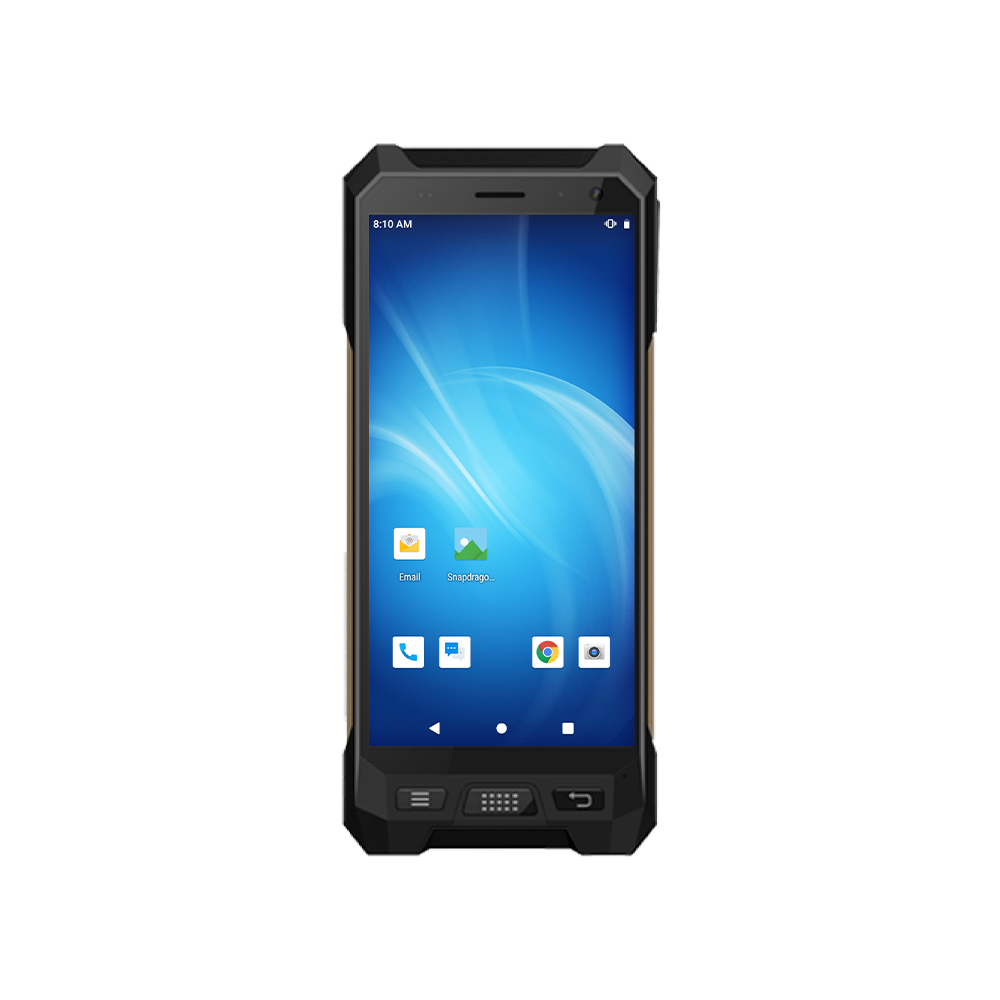

  The 6.0″ IPS FHD+ screen (1080×2160) with multi‑touch delivers crisp, detailed visuals – ideal for reviewing inventory lists, maps, forms, and product images even in bright light.

• Solid Performance
  Powered by the Qualcomm SDM450 octa‑core 1.8GHz processor and Android 9.0 with 2GB RAM + 16GB ROM (expandable via TF up to 128GB). Handles daily data collection tasks smoothly.

• Long‑Lasting Battery
  The 3.8V / 6000mAh high‑capacity battery supports intensive use throughout long shifts. (Note: Battery is non‑detachable.)

• Lightweight & Ergonomic
  At 188 × 83 × 22mm and weighing <500g, the R530C is comfortable for one‑handed operation while still offering a large screen.

• Comprehensive Connectivity

• Dual‑band Wi‑Fi (2.4/5GHz, 802.11 a/b/g/n/ac)

• Bluetooth 4.2

• 4G LTE global bands (FDD: B1/3/5/8; TDD: 34/38/39/40/41) + 2G/3G fallback

• Multi‑GNSS: GPS/GLONASS/BeiDou/Galileo for precise positioning

• Professional Imaging & Feedback
  Rear 16 MP autofocus camera with flash • Front 8 MP camera • Tri‑color breathing light • Vibration motor • Loudspeaker & microphone support voice calls.

• Physical Controls

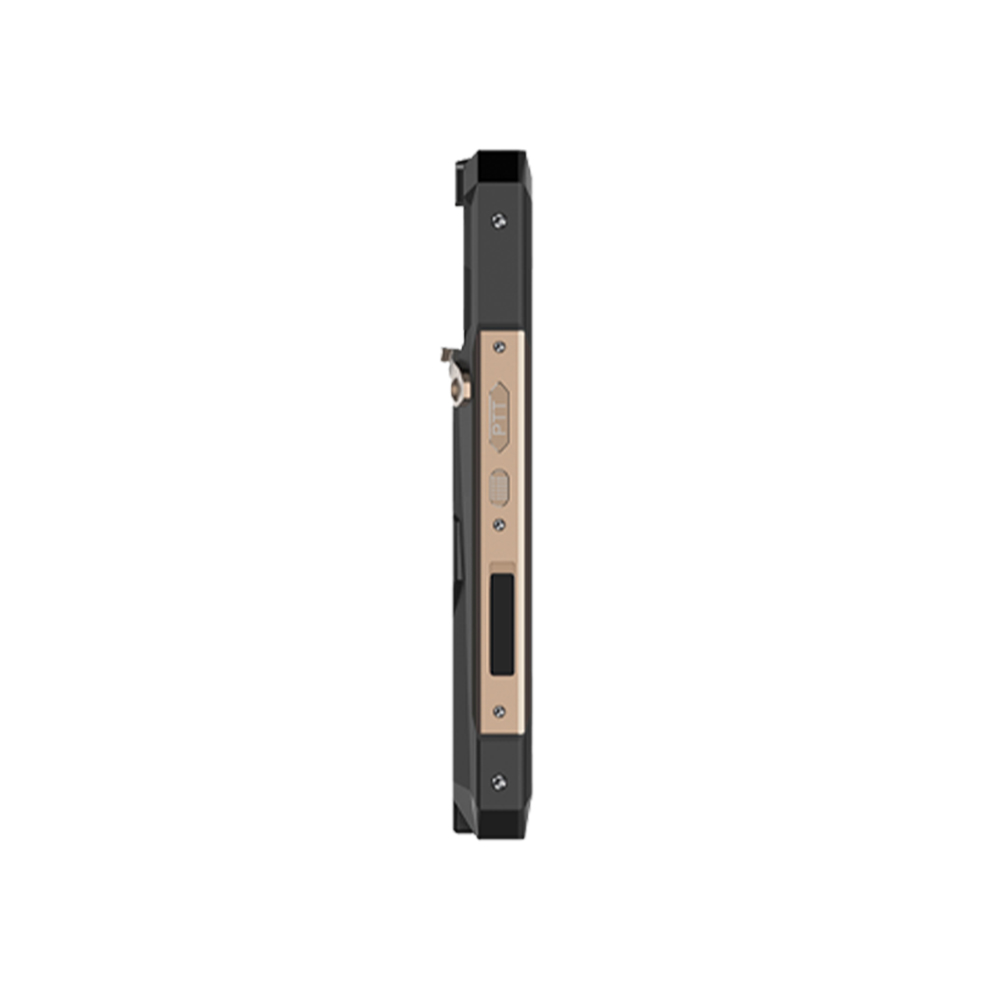

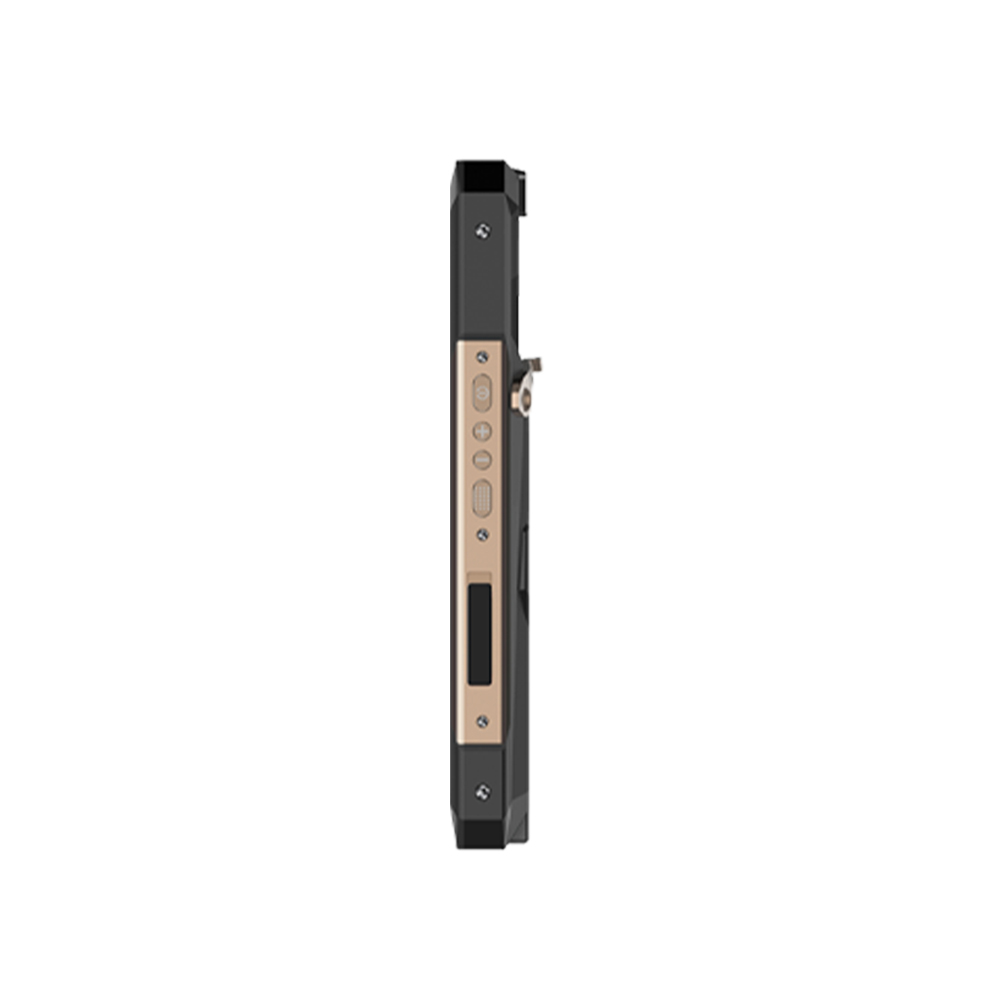

  Side keys: Power, Volume +/‑, and two dedicated SCAN buttons for easy barcode triggering.

Key Technical Specifications

Optional Functions – Built for Your Workflow

• 2D Barcode Scanning Engine
  Accuracy ≥3mil – reads all standard 1D/2D barcodes, even worn or low‑contrast labels.

• NFC Reader/Writer
  Frequency 13.56MHz • Supports ISO14443A/B, ISO15693, NFC tags • Read/write M1 (S50, S70), CPU tags • Distance 2‑3cm – ideal for access control, inventory verification, or contactless payments.

• UHF RFID (Built‑in Ceramic Module)

• Module: 40×40 ceramic antenna

• Frequency options: FCC (902‑928MHz) / ETSI (865‑868MHz) / SRRC (840‑845 & 920‑925MHz)

• Protocol: EPC Class 1 Gen 2 (ISO 18000-6C)

• Read distance: ≤2 meters – perfect for medium‑range asset tracking and inventory counts.

• PSAM (1 Slot)
  Supports ISO/IEC 7816‑1/2/3/4 – one PSAM card slot for secure key storage, payment authentication, or government ID verification.

Optimized for Your Industry

• Warehouse & Logistics – Receive, pick, pack, and ship with barcode or RFID scanning. Large screen shows order details clearly.

• Retail Store Management – Check prices, update stock, process mobile payments via NFC/PSAM.

• Asset Tracking – Attach UHF tags to equipment or vehicles for quick, non‑line‑of‑sight reading.

• Field Service & Inspection – Capture photos with 16 MP camera, record location via GNSS, and scan asset tags.

What’s in the Box

Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.

Ready to Upgrade Your Data Collection?

The R530C handheld PDA offers a large, sharp display, marathon battery life, and flexible optional features (2D scan, NFC, UHF RFID, PSAM) – all at an affordable price point. Contact us for a demo, custom configuration, or volume pricing.
