RS50 5G Rugged Handheld Terminal

6.3″ FHD+ | Harmony OS / Android 13 | Unisoc Octa‑Core with NPU | Independent Beidou RTK | IP67

The RS50 is a next‑generation 5G rugged handheld terminal that combines powerful hardware with flexible operating system choices (Harmony OS or Android 13). Driven by the Unisoc UIS7885 octa‑core 2.7GHz processor featuring an 8‑Tops NPU for AI acceleration, it delivers exceptional performance for field data collection, asset management, and precise positioning. With independent Beidou RTK positioning, a 48MP main camera, and IP67 protection, the RS50 excels in challenging environments.

Why Choose RS50?

• Dual‑OS Flexibility
  Choose between Harmony OS and Android 13 on the same hardware. Run your preferred ecosystem, enterprise apps, or custom solutions without compromise.

• AI‑Ready Performance
  The Unisoc UIS7885 octa‑core 2.7GHz chip integrates an 8‑Tops NPU – ideal for on‑device AI tasks such as image recognition, OCR, and predictive maintenance. 6GB RAM + 128GB ROM (expandable via TF to 512GB) ensures smooth multitasking.

• Independent Beidou + RTK High‑Precision Positioning
  Supports independent Beidou positioning (no reliance on other GNSS constellations) and RTK (Real‑Time Kinematic) for centimeter‑level accuracy – perfect for surveying, power line inspection, precision agriculture, and asset geofencing.

• Stunning 6.3″ Display
  6.3‑inch IPS FHD+ (1080×2340) with 5‑point G+F+F capacitive touch – bright, responsive, and easy to use even with gloves.

• Professional Triple Camera System

• Rear 48 MP autofocus main camera with LED flash

• Rear 8 MP macro sub‑camera (optional) for close‑up details

• Front 8 MP camera for video calls or selfie documentation

• All‑Day Detachable Battery
  3.8V / 5000mAh detachable battery – swap batteries without shutting down. USB‑C with Power Delivery and 2‑pin Pogo Pin support fast charging and docking.

• Rugged & Compact

• IP67 dust/water resistance (fully submersible)

• 1.2m drop height

• Dimensions: 172 × 76.6 × 16.5 mm | Weight: <500g – slim and light for a rugged device.

• Comprehensive Connectivity

• 5G SA/NSA (bands N1/N3/N5/N8/N28/N41/N78/N79) with 5G MIMO

• Dual‑band Wi‑Fi 802.11 a/b/g/n/ac (2.4/5GHz)

• Bluetooth 5.0

• 4G LTE (B1/B3/B5/B8/B34/B38/B39/B40/B41) and WCDMA fallback

• Multi‑GNSS: GPS, GLONASS, Galileo (in addition to independent Beidou)

• Rich Feedback & Controls

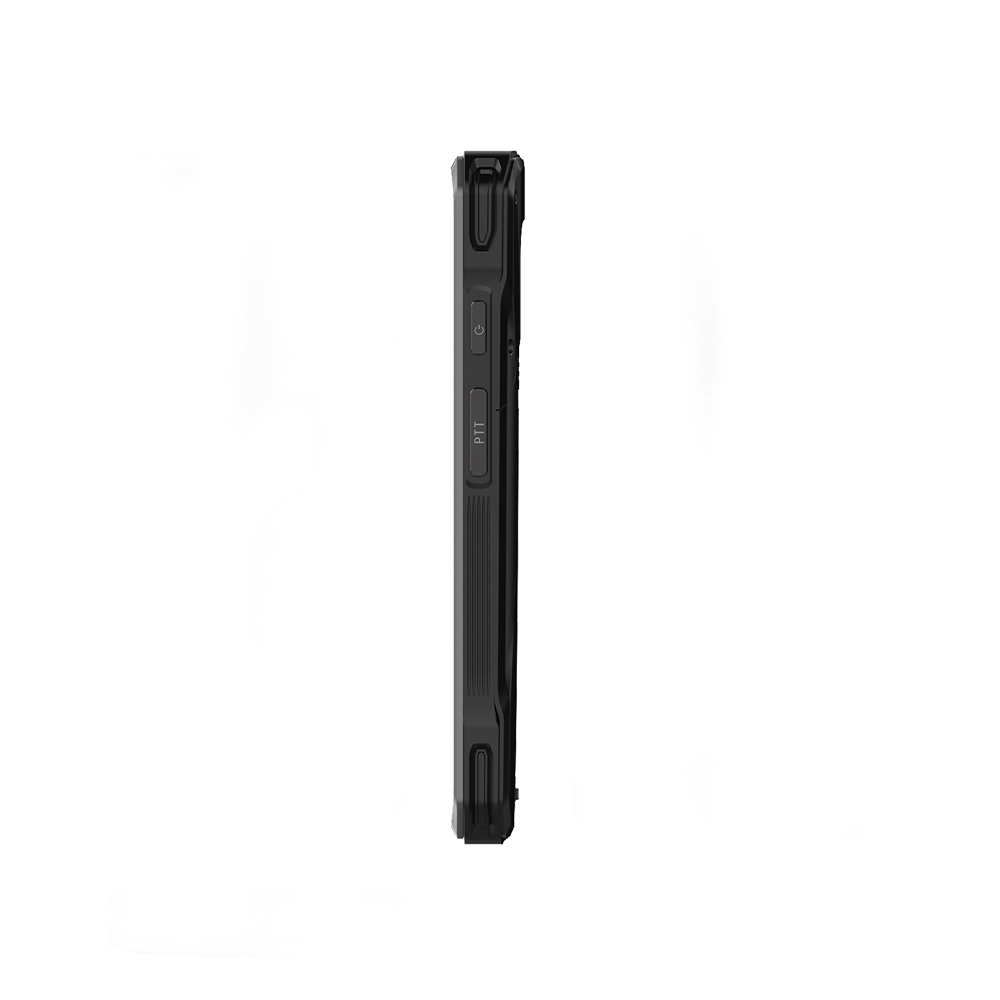

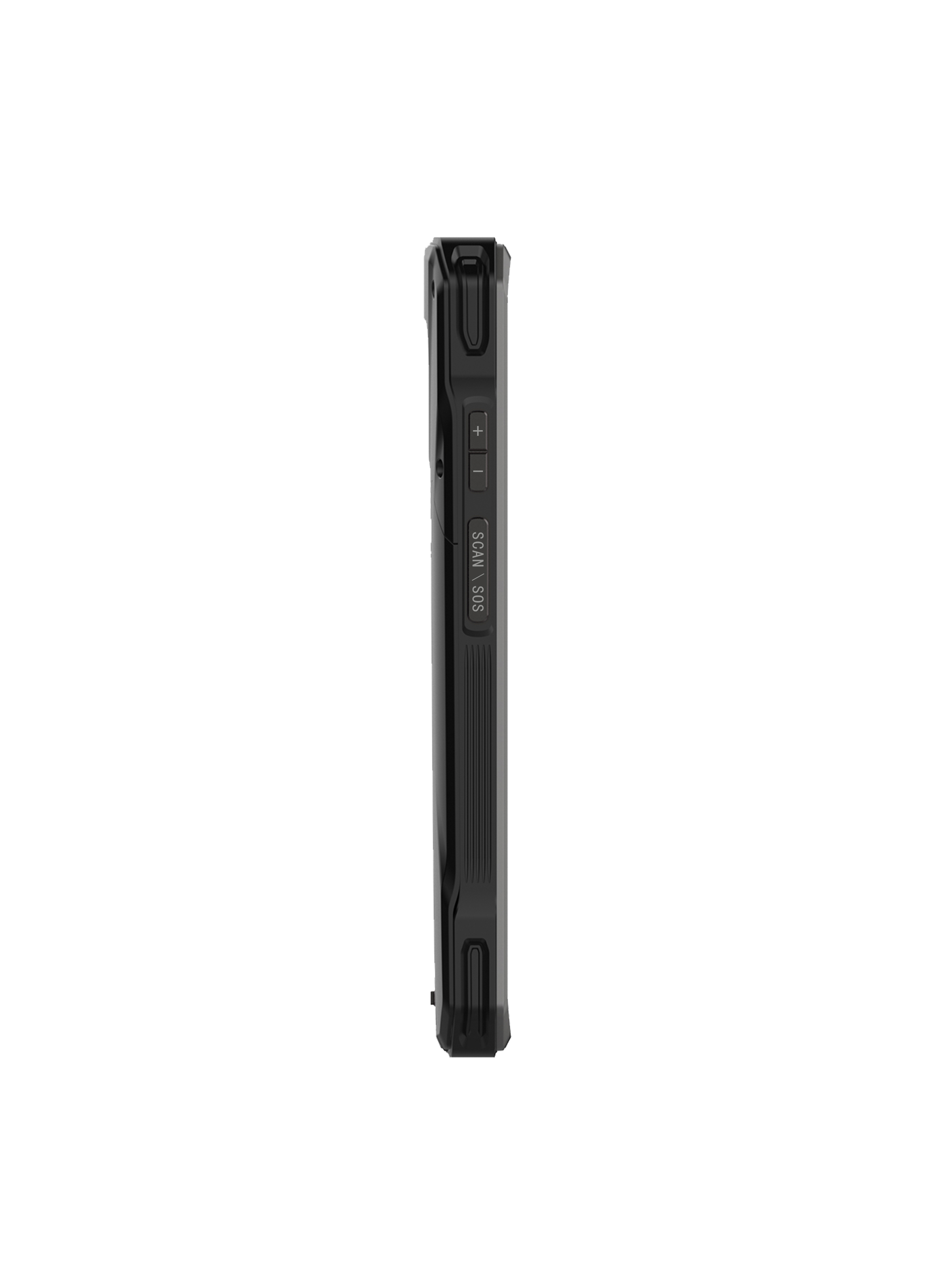

  Tri‑color breathing light • Motor vibration • Loudspeaker & microphone with voice call support • Side keys: Power, Volume +/‑, two SCAN buttons.

Key Technical Specifications

Optional Functions – Tailor to Your Workflow

• 2D Barcode Scanning Engine
  Accuracy ≥3mil – reads all standard 1D/2D barcodes, even damaged labels.

• NFC Reader/Writer
  Frequency 13.56MHz • Supports ISO14443A/B, ISO15693, NFC tags • Read/write M1 (S50, S70), CPU tags • Distance 2‑3cm – ideal for access control or contactless verification.

• Independent Beidou + RTK (highlighted as a core differentiator – included, not optional)
  True independent Beidou positioning, plus RTK for centimeter‑level accuracy.

• Fingerprint Sensor
  Supports fingerprint unlocking – secure device access and user authentication.

Optimized for Your Industry

• Surveying & Mapping – Leverage independent Beidou RTK for precise boundary and topographic surveys.

• Power / Utility Inspection – Capture high‑resolution 48MP images of infrastructure, tag locations with RTK accuracy.

• Field Asset Management – Scan barcodes or NFC tags, record asset condition with photos, and update inventory in real time via 5G.

• Public Safety & Security – Use fingerprint unlock and encrypted Harmony OS for secure data collection.

• Agriculture – Map fields, monitor crops with macro camera, and navigate with centimeter‑level GPS.

What’s in the Box

Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.

Ready to Deploy the Next Generation of Rugged Computing?

The RS50 5G rugged handheld offers unmatched OS flexibility, AI‑powered performance, and precision positioning – all in a slim, IP67‑rated body. Contact us for a demo, Harmony OS customization, or volume pricing.
