7.0 Inch TFT LCD Display Module – High Brightness, Wide Viewing Angle
7.0 Inch TFT LCD Display Module – High Brightness, Wide Viewing Angle

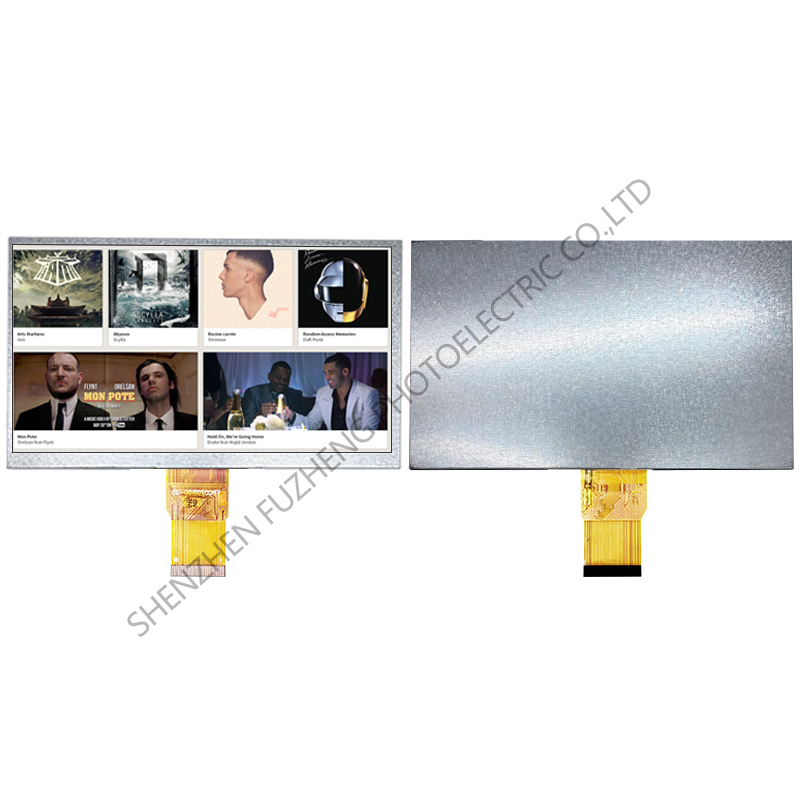

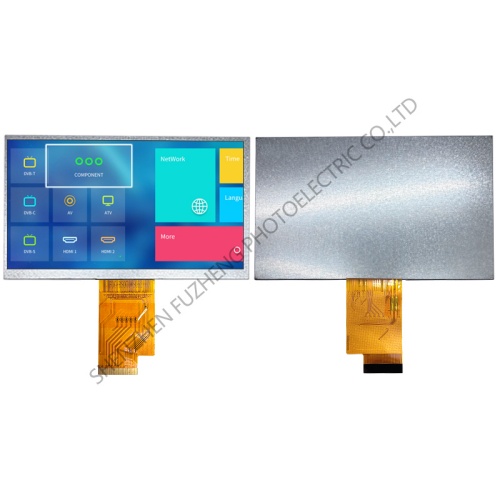

This 7.0-inch TFT LCD display offers exceptional visual clarity with a resolution of 1024x600 pixels, making it ideal for embedded systems, industrial equipment, and medical devices. With its high brightness of 1000 nits and wide 170° viewing angle, the display ensures clear visibility even under direct sunlight.
Key Features:
Display Size: 7.0 inches
2Resolution: 1024 x 600
Brightness: 1000 cd/m²
Contrast Ratio: 800:1
Interface: RGB/HDMI/LVDS optional
Operating Temperature: -20°C to +70°C
Optional Capacitive/Resistive Touchscreen
Product Details
Size:
7.0inch
Display Resolution:
1200*3(RGB)*1920
LCD Mode:
A-Si TFT/transmissive
Outline Dimension:
111.0(H) *166.0(V) *3.29(T) Mm
Active Area:
94.5*(H) * 151.2(V) Mm
Pixel Arrangement:
RGB-stripe
Viewing Direction:
80/80/80/80
Display Mode:
Normally Black
IC Package Type:
COG
Surface Treatment:
Hard Coating
Interface:
MIPI
Response Time:
30ms
Highlight:
7.0 inch TFT LCD display module
,high brightness TFT LCD
,wide viewing angle LCD display
