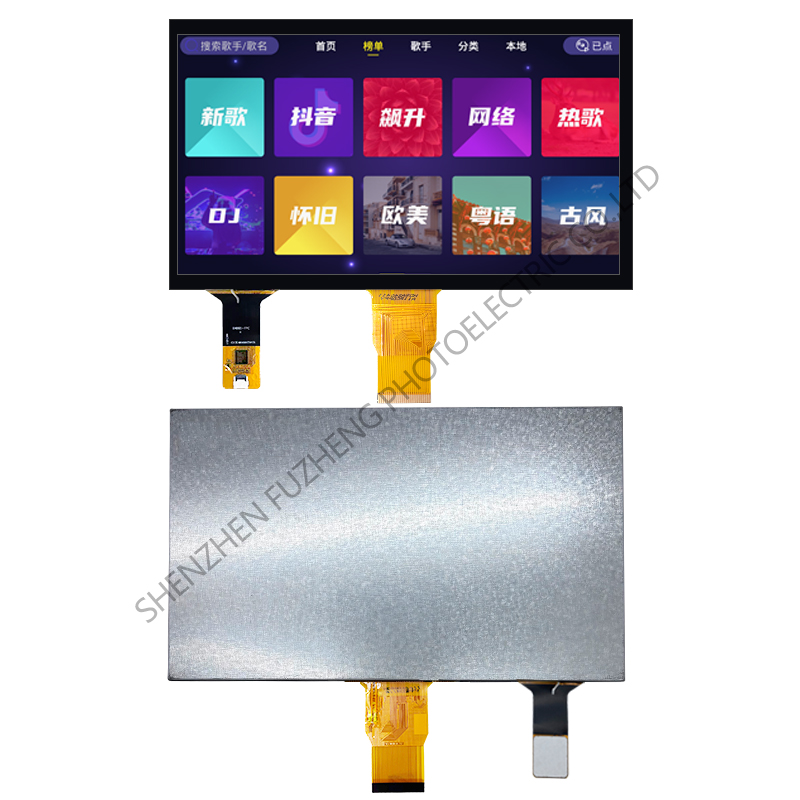

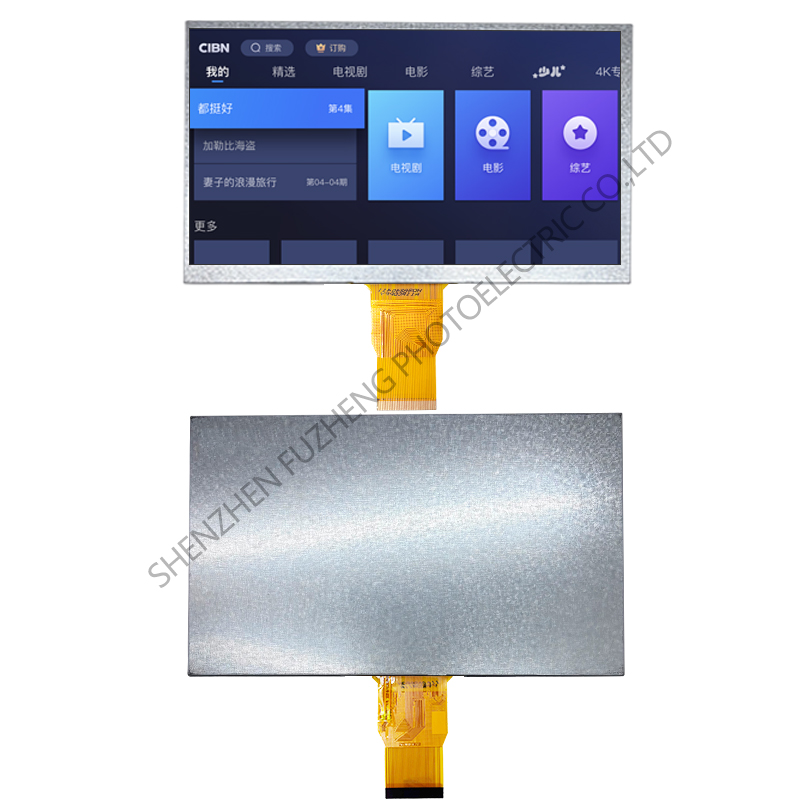

10 inch Landscape LVDS TFT display resolution 1024(RGB) x600
General Specifications
FZ1001R50-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

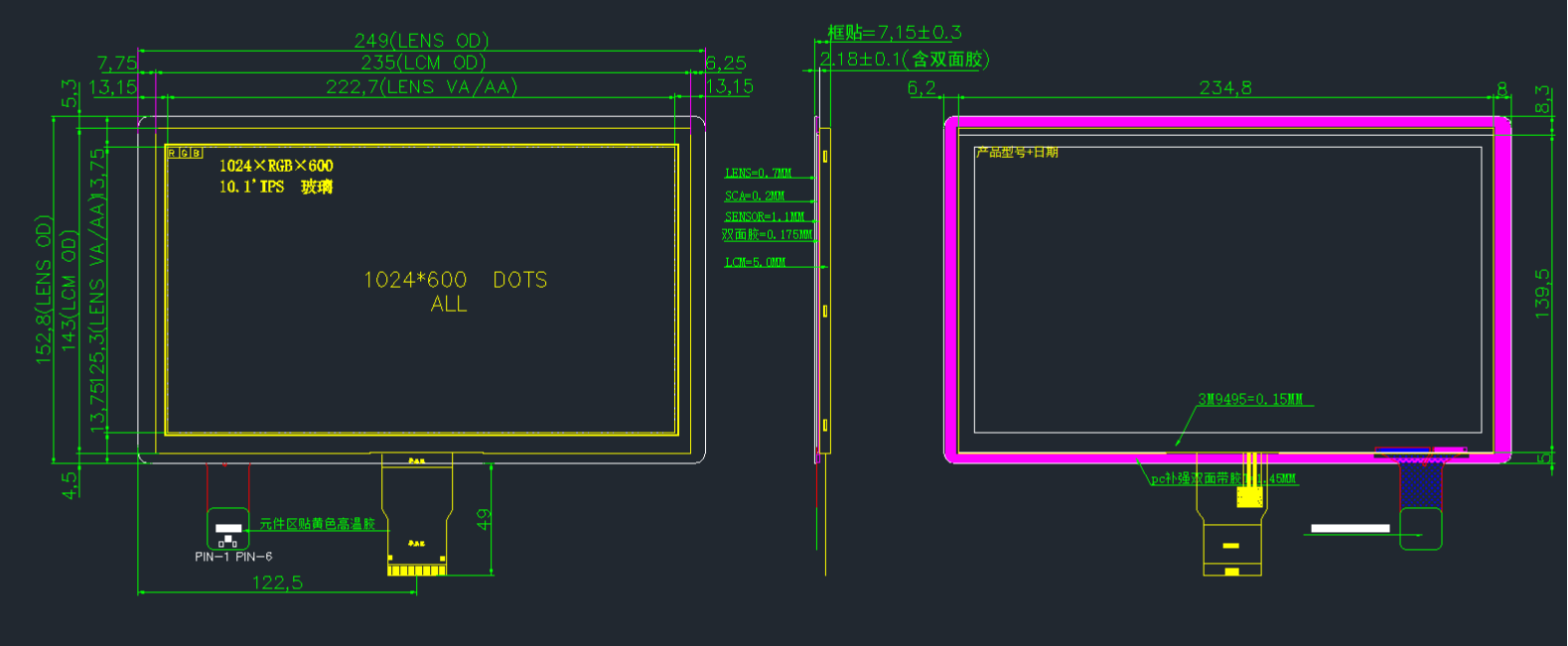

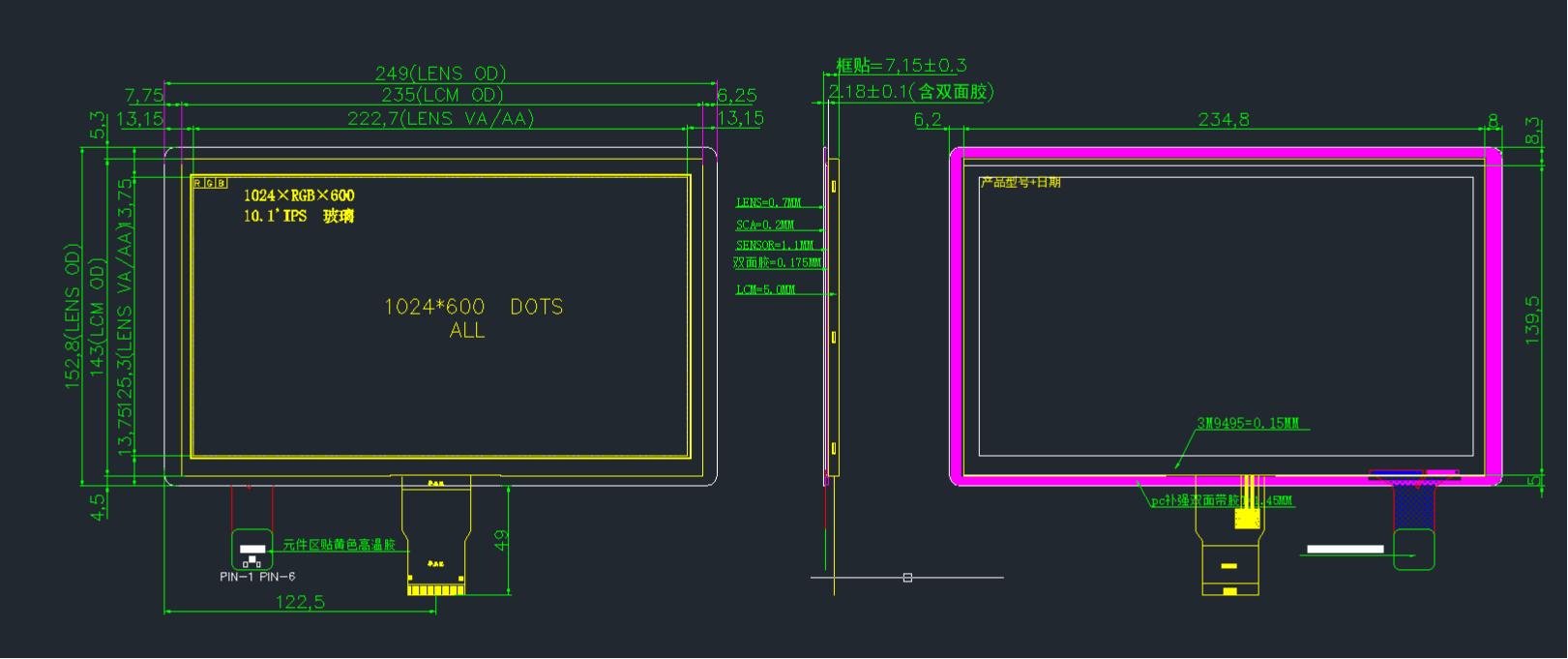

Item | Contents | Unit |
LCD Type | TFT TRANSMISSIVE | / |
Viewing direction | ALL | O' Clock |
Module outline (W x HxD) | 235x143x3.5 | mm |
Active area (WxH) | 222.72x125.28 | mm |
Number of Dots | 1024 x600 | / |
Driver IC | / | |
Backlight Type | 6*7chips white LED | / |
Interface Type | LVDS | / |
Input voltage | 3.3 | V |
ELECTRICAL CHARACTERISTICS
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Power Voltage | DVDD | 3.0 | 3.3 | 3.6 | V | |
AVDD | 10.65 | 10.85 | 11.05 | V | ||
VGH | 20 | 21 | 22 | V | ||
VGL | - | -8 | - | V | ||
Input signal voltage | VCOM | 3.6 | 3.8 | 4.2 | V | |
Input logic high voltage | VIH | 0.9VDD | - | DVDD | V | |
Input logic low voltage | VIL | 0 | - | 0.1DVDD | V | |
Note1：If users use the product out off the environmemtal operation range（temperature and humidity）,it will have visual quality concerns.
Note2：Be sure to apply DVDD and VGL to the LCD first,and then apply VGH
Note3：DVDD setting should match the signals output voltage(refer to Note4)of customer's system board.
Note4：DCLK,HS,VS,RESET,U/D,L/R,DE,R0-R7.G0-G7,B0-B7,MODE,DITHB.

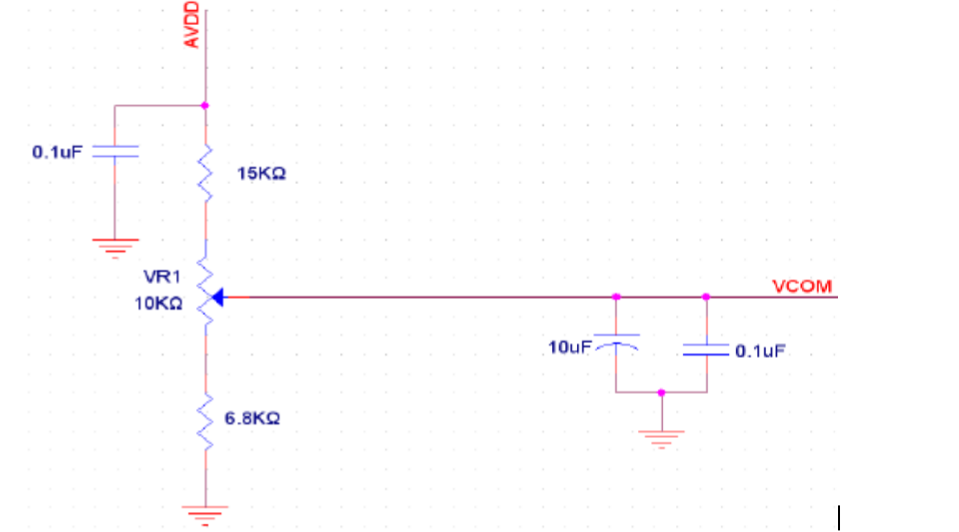

Note5：Typical VCOM is only a reference value,it must be optimized according to each LCM. Please ues VR and base on below application circuit.
Current Consumption
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Current for Driver
| IGH | - | 0.50 | 1 | mA | VGH=18.0V |
IGL | - | 0.50 | 1 | mA | VGL=-6.0V | |
IVDD | - | 8 | 15 | mA | VDD=3.3V | |
IAVDD | - | 30 | 40 | mA | AVDD=9.6V | |
BACKLIGHT CHARACTERISTICS
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 9.0 | - | V | If=140mA |
Luminance | Lv | - | 400 | - | cd/m2 | If=140mA |
Number of LED | -- | 42 | Piece | -- | ||
Connection mode | P | 6chips serial *7 | -- | -- | ||
