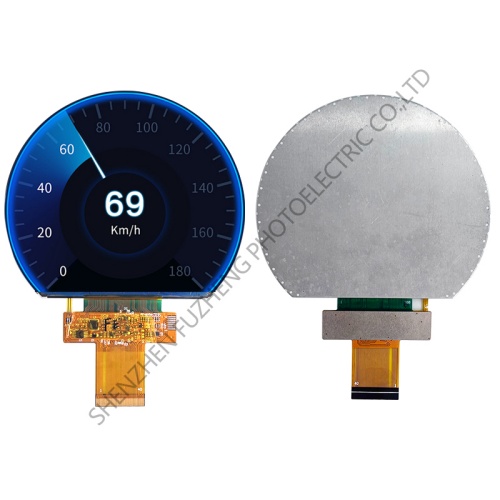

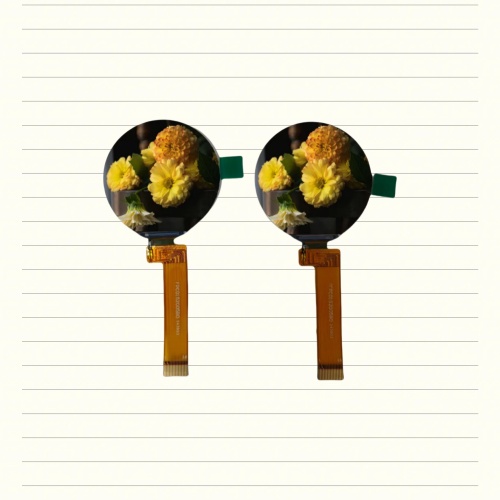

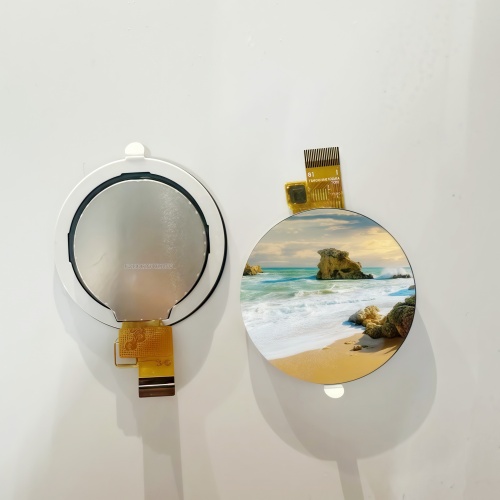

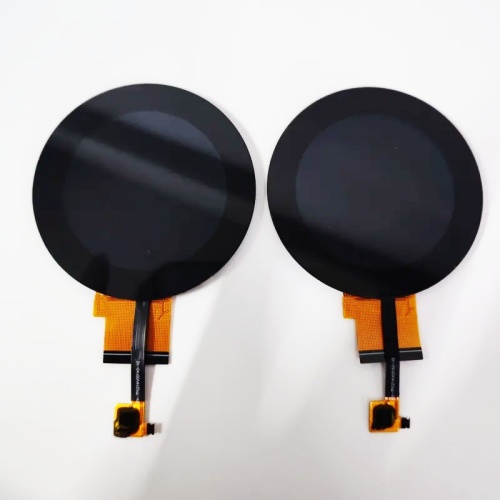

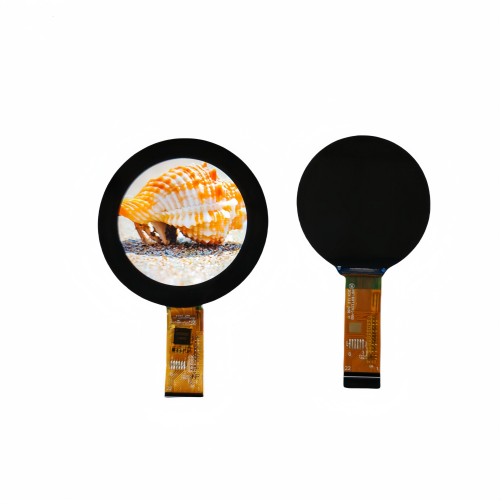

1.3inch IPS TFT 380cd Brightness Circular Touch Lcd Display
| Product Specification | ||
| Size | 1.3inch | |
| Resolution | 240(RGB)X240 | |
| Backlight Type | LED | |
| LCD Type | Transmissive TFT | |
| Driving IC | GC9A01 | |
| Brightness | 380cd/m2 | |
| Operating temperature | -20℃~70℃ | |
| Active Area | 32.4(W) X32.4(H) mm | |
| Interface Pin Definition | ||
| NO. | Symbol | Function |
| 1 | LEDA | LED,anode. |
| 2 | LEDK | LED,cathode. |
| 3 | GND | Ground |
| 4 | TP-VCC | Power setting |
| 5 | TP-RESET | TP RESET PIN |
| 6 | TP-INT | TP INT |
| 7 | TP-SDA | TP SDA |
| 8 | TP-SCL | TP SCL |
| 9 | GND | Ground |
| 10 | TE | TE |
| 11 | SDA | SPl interface input/output pin. |
| 12 | WRIA0 | command selection pin in 4-line serial interface |
| 13 | SCL | This pin is used to be serial interface clock |
| 14 | CS | -Chip selection pin |
| 15 | RESET | Reset signal. |
| 16 | IOVCC | Power supply for digital interface |
| 17 | VDD | Power supply. |
| 18 | GND | Ground |
